Systemline Homenet Enclosures (Chassis)
|
|
Small Chassis:-
◾Supplied with 16 populated Cat5 ports
◾Capacity for expansion to 24 ports
◾Built in swing frame
◾Door and swing frame can be hinged from left or right
◾Mild steel with powder coated silver finish
◾Housing within frame for either:
◾ - AM8 multi-source hub or
◾ - HPM1 single source hub
◾Dimensions (WxHxD): 304 x 436 x 200mm
Medium Chassis
Supplied with 24 populated Cat5 ports
|
|
Systemline AM8 Multi-Source Hub
|
|
6 inputs 8 zonesThis is a 6 x 8 audio matrix switcher where multiple sources are connected
exclusively over usingCAT-5/6 cable using balanced line.8 zone outputs are provided via
RJ-45 sockets, which use CAT-5/6 cable to feed either active speakers or zone amplifiers
located in their respective rooms. This cable delivers power and balanced audio to the zones
together with a coms & IR bus.
Specification:
|
|
Systemline HM1 Single Source Hub
|
|
1 input 6 zone
The single central input can be accessed either directly through the phono sockets (the second pair provide loop through), or via an RJ-45 socket if the source is remotely located. The later is delivered using over balanced line over CAT5/6 cable.
6 zone outputs are provided via RJ-45 sockets, which use CAT-5/6 cable to feed either active speakers or zone amplifiers located in their respective rooms. This cable delivers power and balanced audio to the zones together with a coms & IR bus
|
|
Systemline DIM Digital Input Module
|
|
The Digital Input Module receives either digital optical or analogue audio inputs and
transmits them as balanced audio over Cat5/6 cable which then connects to either a local or
main system input. It also has one IR jack for control of the source.
Specification:-
• Dimensions (WxHxD) mm: 50 x 50 x 40
• Euro data compliant (will fit MK Euro 50x50 data slots)
• Requires standard single gang back box 44mm deep
|
|
CYP XA-S11 (XAS11 ) EDID/CEC Selector
|
|
The XA-S11 high performance HDMI v1.3 synchroniser allows the user to set up a firm EDID and CEC connection between the source and the display, eliminating the time spent on signal configuration before receiving the signal.
Specification:-
•HDMI 1.3 and DVI 1.0 compliant
•EDID/CEC Synchroniser
•Resolutions supported: PC - VGA, SVGA, XGA, SXGA to UXGA. HDTV - 480i/p, 576i/p, 720p, 1080i/p
•HD Audio
|
|

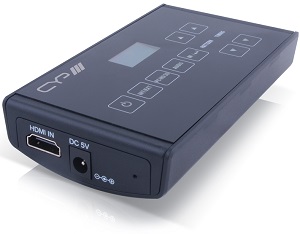

CYP XA-1 (XA1) 3D Ready Mini Pattern Generator
|
|
XA-1 3D Ready Mini Pattern Generator with HDMI Source Analysis and Audio Return Channel (ARC) Test Function
The XA-1 is the perfect analysis tool for AV installers and integrators. This device allows the user to analyse AV sources for resolution and EDID information whilst also providing pattern generation and test functions for identifying display capabilities. This small but advanced HDMI analyser also supports the analysis and pattern generation of 3D signals. This allows the user to check compatibility between sources and displays and provides a means of identifying system problems for troubleshooting.
|
|
CYP SY-PT385A (SYPT385A) PC/VGA to CV & SV (NTSC & PAL)
|
|
The SY-PT385A is a PC to Video scan converter which is designed to convert a variety of PC analogue video signals from VGA to WUXGA. This device also converts between interlaced NTSC or PAL video and features a frame rate conversion function in addition to an Overscan / Underscan function that allows users to view PC source on a Composite or S-Video monitor without cropping the images.
Specification:-
|
|
CYP SY-P295N (SYP295N) CV/SV to HDMI Converter and Scaler with Audio
|
|
The SY-P295N is designed to scale analogue video signal from a CV or SV source to a digital HDMI output, boasting a wide-range of HDTV and PC resolutions. Audio is combined with HDMI video output. This unit offers a selection of colour space and adjustment to obtain the best picture quality.
Specification:-
•v1.2 HDMI, HDCP 1.1 and DVI 1.0 compliant
•Analogue to HDMI Converter Scaler with Audio
|
|

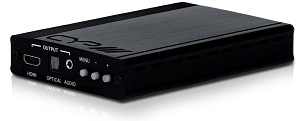

CYP SY-P293 (SYP293) PC to HDMI Converter and Scaler with Audio
|
|
The SY-P293 is designed to scale analogue video signal from a PC source to a digital HDMI output boasting a wide-range of HDTV and PC resolutions. Audio is combined with HDMI video output. This unit offers a selection of colour space and adjustment to obtain the best picture quality.
Specification:-
•v1.2 HDMI, HDCP 1.1 and DVI 1.0 compliant
•PC to HDMI Scaler Converter with Audio
•Scales any PC resolutions to PC or HDTV resolutions
|
|
CYP SY-P290 (SYP290) PC/DVI to HDMI Converter
|
|
The SY-P290 is designed to convert and scale Digital or Analogue RGBHV or YUV to HDMI for improved viewing. This unit offers a wide selection of output resolutions/format, colour space and adjustment to obtain the best picture quality.
Specification:-
•v1.2 HDMI, HDCP 1.1 and DVI 1.0 compliant
•PC/DVI to HDMI Converter
•Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA,WUXGA.
|
|
