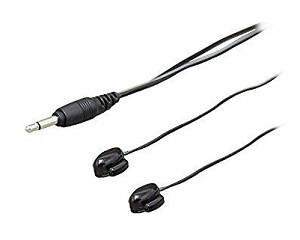

SpeakerCraft IRE-4.0 Dual IR Emitter
|
|
Dual Blink Emitter. EZ-Dock. Slide On/Off Mounting.
The IRE-4.0 is the dual emitter version of the IRE-3.0.
It features a unique EZ-Docker plate that permits the instant removal of the emitter when re-arranging or servicing components. It flashes red when emitting IR control signals.
The IRE-4.0 has 75% lower IR output than non-visible emitters and therefore should be used when controlling multi-zone components to avoid cross-zone interaction.
|
|

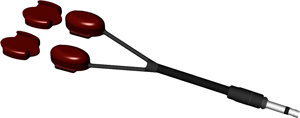

SpeakerCraft IRE-2.0 Emitter
|
|
Dual Non-Blink Emitter. EZ-Dock. Slide On/Off Mounting
The IRE-2.0 is the dual emitter version of the IRE-1.0.
It features a unique EZ-Docker port that permits the instant removal of the emitter when re-arranging or servicing components. An improved adhesive reduces service calls for re-attachment of ‘fallen emitters’.
The case may also be taken apart so that the tiny internal emitter can be placed inside a component, when desired. High IR output from the top curved surface allows emitter to be mounted on a nearby surface, below, above or on a cabinet door, rather than directly on the sensor of the unit where conditions permit.
|
|

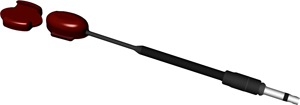

SpeakerCraft IRE-3.0 Emitter
|
|
Single Blink Emitter. EZ-Dock. Slide On / Off Mounting.
The IRE-3.0 represents the highest level in sophistication for attachable IR emitters.
It features a unique EZ-Docker port that permits the instant removal of the emitter when rearranging or servicing components. It flashes red when emitting IR control signals.
The IRE-3.0 has a 75% lower IR output than non-visible emitters and therefore should be used when controlling multi-zone components to avoid cross-zone interaction.
|
|
SpeakerCraft IRE-1.0 Emitter
|
|
Single Non-Blink Emitter. EZ-Dock. Slide On/Off Mounting
The IRE-1.0 represents the highest level in sophistication for attachable IR emitters.
It features a unique EZ-Docker port that permits the instant removal of the emitter when re-arranging or servicing components. An improved adhesive reduces service calls for re-attachment of ‘fallen emitters’. The case may also be taken apart so that the tiny internal emitter can be placed inside a component, when desired.
|
|
SpeakerCraft AT-1.0 Termination Block
|
|
Four-Output Amplified Termination Block. Medium or Blaster Emitter Outputs
The AT1.0 is the hub of all SpeakerCraft SmartPath systems.
It provides a convenient means of interconnecting SpeakerCraft (and industry compatible) IR products in IR repeating systems.
It includes a wide bandwidth amplifier for robust operation and the ability to also drive high power blaster emitters.
Four emitter sockets are provided, with all out puts being amplified, enabling long distance emitter runs. Two of the emitter outputs can be switched to high power mode to run the IRE5.0 blaster emitters.
|
|
SpeakerCraft EMX-1.0 Emitter Expander
|
|
Ten Output Emitter Expander. Use With AT-1.0 Terminating Unit
The EMX-1.0 is a simple but ingenious device. Simply plug it into a blaster emitter output of the AT1.0 and the EMX-1.0 will add ten further emitter outputs.
When combined, the AT-1.0 and EMX-1.0 are capable of controlling the largest home theatre installations.
Additional EMX-1.0 units can be daisy-chained if required.
SPECIFICATIONS
Overview:
|
|
SpeakerCraft PT-1.0 Quad Plug IR Termination block
|
|
Passive Termination Block. Quad Plug IR Input. 2x Emitter Outputs. Use PSU
For simple IR control systems, the PT1.0 is the ideal choice. A single SpeakerCraft Quad Mini Plug IR receiver plugs directly into the PT-1.0. With two emitter outputs, up to four components can be controlled with the use of the IRE-2.0 and IRE-4.0 dual emitters.
SPECIFICATIONS
Overview:Passive Termination Block
Applications:Single
|
|
SpeakerCraft BOT-1.0 SmartPath quad plug
|
|
SpeakerCraft SmartPath quad plug to bare wire adaptor
Converts any SpeakerCraft quad plug lead to a bare wire screw termination. Ideal for extending the data cable of any SmartPath IR receiver.
|
|
SpeakerCraft IRC-2-P IR Receiver
|
|
Micro Surface Mount Plasma Proof IR Receiver
Designed for mounting directly on to the front panel of a Plasma screen, the IRC-2P is an exceptionally small IR receiver specifically designed to eliminate the potential IR control issues caused by certain Plasma screens.
Among its unique features is an exclusive Ambient Noise Suppression (ANS) and code reconstruction system that effectively recreates the original IR signal, completely removing the saturation effect sometimes encountered when using a Plasma Screen.
|
|
SpeakerCraft IRC-1.0 IR Receiver
|
|
Flush mount IR Receiver. ANS Noise Suppression. Inc. Bezels. Quad Plug
Designed to flush mount into a cabinet or rectangular in-wall speaker, the IRC-1.0 is one of the smallest IR receivers in the SmartPath range.
Each receiver is encased in a brass, threaded tube, with only a circular bezel exposed to the room. Snap-on Colour Cap (paint-able) bezels are included in White, Bone, Almond, and Black.
Among
|
|
