WyreStorm MXV-0408-H2A-v2 (MXV0408H2Av2) Matrix
|
|
WyreStorm 4K HDR 4:4:4 60Hz HDBaseT™ 4x8 (2xHDMI) Matrix Switch (4K 35m/1080p 70m)
The latest in market leading matrix solutions, WyreStorm’s MXV range brings the familiar power of the H2-series to a compact 1U chassis, offering transmission
of HDMI content up to 4K/60 4:4:4 & HDR to 35m/115ft, pairing powerful HDBaseT & WyreStorm’s variable light compression technology’s. The MXV-0408-H2A
has 6 HDBaseT zone outputs with PoH and 2 switched HDMI outputs which can be paired with WyreStorm’s HAOC hybrid optical HDMI cables or any extender
for transmission of HDBaseT or OM3 fibre. The MXV-0408-H2A also lets you do even more with your audio, offering audio breakout from either source or output
via Toslink optical. CEC triggering for all connected screens and A/V mute function enhances the offering for the modern home or commercial installation.
|
|
WyreStorm MXV-0404-H2A-KIT (MXV0404H2AKIT) HD BaseT Matrix Kit
|
|
MXV-0404-H2A-KIT
4K HDR 4:4:4 60Hz HDBaseT™ 4x4 Matrix Kit with Audio De-Embed & CEC Triggering (4K: 35m/114ft, 1080p: 70m/230ft)
The latest in WyreStorm's H2 matrix line up gets an upgrade in the form of WyreStorm's light compression technology meaning the MXV-0404-H2A-KIT can handle HDMI content up to 4K/60 4:4:4 including HDR. CEC triggering for connected screens and A/V mute function enhances the offering for the modern home or commercial installation.
|
|
WyreStorm NHD-250-RX (NHD250RX) - 1080p Receiver
|
|
NHD-250-RX - NetworkHD™ 200 Series AV over IP H.264 Multiview Processor
The NHD-250-RX is an enhanced multiview display decoder compatible with the NetworkHD™ 100 and 200 Series, an ultra low bandwidth H.264 AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. Capable of displaying up to 9 simultaneous video feeds on a single display in tile mode and up to 6 inputs in overlay mode, users can select configurable layouts using grid style or layered modes.
|
|
WyreStorm EX-SW-0401-H2-PRO (EXSW0401H2PRO)
|
|
EX-SW-0401-H2-PRO
4+2 Input HDBaseT Switching Extender with USB2.0 & Relay Triggering
Features:-
•4x input professional switcher/extender for video conference and meeting rooms
•Bidirectional USB2.0 for connection of webcams, smart whiteboards, touchscreens and microphones
•Inputs include HDMI, VGA, DisplayPort 1.3 and USB 3.1c
•Supports source content up to 4K/60 4:2:0
•Variable audio de-embed on receiver
|
|
WyreStorm EX-40-G3 (EX40G3) 1080p Cat5e/6 Extender
|
|
EX-40-G3 1080p HDMI-over-UTP Extender with IR and PoC
•Transmits 1080p HDMI content over UTP to 40m/131ft
•PoC allows for powering both TX and RX using a single power supply connected to the TX
•IR pass-through RX>TX for source control
•Simple signal equalization via slider switch
•Slim 21mm chassis for discreet installation
With the low-profile point-to-point EX-40-G3 extender set, it’s never been easier to extend full 1080p HD video over a Cat5e cable; HD audio is also supported. Plus with IR source control and PoC (power-over-cable) all wrapped up in a compact chassis for unbeatable value, reliability and ease of installation.
|
|
CYP MOD-16 (MOD16) Modular Matrix Chassis
|
|
MOD-16 - 16x16 Modular Matrix Chassis (3U) Matrix
The 16x16 Modular Matrix is designed to allow the switching and
distribution of up to 16 source devices to up to 16 connected
displays, either directly via HDMI, DVI or via CAT5e/6/7 outputs to
compatible receivers, providing control options (dependent on module
configuration).
Providing unparalleled levels of flexibility, with an advanced modular
design these models can be setup in a wide variety of combinations
allowing users the ability to tailor the Matrix to their requirements by
simply adding or removing the input or output modules as required.
The Modular Matrix is supplied with dual removable internal PSU's which
allow for easy inspection and maintenance with zero down time. Also
included is a DVI output for local monitoring of the output allowing
installers to easily monitor, test, and configure the Inputs and Outputs on
installation
|
|

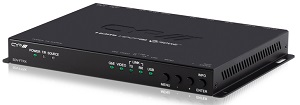

CYP SDV-CTRX (SDVCTRX) SDVoE 4KUHD(6G) HDMI over CAT (10G) Transceiver
|
|
SDV-CTRX SDVoE 4KUHD (6G) HDMI over CAT (10G) Transceiver
TheSDV-CTRX is designed to transmit, 4KHDR (6G) signals over a 10G IP Fiber Network with almost zero latency. Every Transceiver can be configured to function as either a Transmitter or a Receiver, providing additional flexibility for any installation. Using a sophisticated ultra-light compression (lossless for most content) it’s the perfect solution for extending 4KHDR video (HDMI or DisplayPort) and data. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color andmulti-channel HD Bitstream audio can be transmitted in pass-through mode. Multiple control and data signals may also be transmitted along with the audio and video, including IR, (RS-232 Future Development) USB (for KVM) and Ethernet.
|
|
CYP SDV-FTRX (SDVFTRX) SDVoE 4KUHD (6G) HDMI over Fiber Transceiver
|
|
SDV-FTRX SDVoE 4KUHD (6G) HDMI over Fiber Transceiver
The SDV-FTRX is designed to transmit, 4KHDR (6G) signals over a 10G IP Fiber Network with almost zero latency.Every Transceiver can be configured to function as either a Transmitter or a Receiver, providing additional flexibility for any installation. Using a sophisticated ultra-light compression (lossless for most content) it’s the perfect solution for extending 4K HDR video (HDMI or DisplayPort) and data. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. The use of interchangeable, field replaceable, SFP+ modules allows for transmission distances of up to 30km (Maximum transmission distance depends on the SFP+ modules used). Multiple control and data signals may also be transmitted along with the audio and video, including IR, (RS-232 Future Development) USB (for KVM) and Ethernet.
|
|

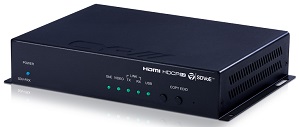

CYP SDV-FRX (SDVFRX) Transmitter and Receiver
|
|
SDV-FRX 4K HDR - HDMI / Displayport over Fibre Receiver (4K UHD, HDMI, USB/KVM, 10Gbit/s)
The SDV-FRX/FTX Transmitter and Receiver set are designed to deliver high-quality, IP routable, AV extension with minimum latency. By using a sophisticated ultra-light compression technology (lossless for most content) it’s the perfect solution for extending 4K audio/video signals (HDMI or DisplayPort) and data over long distance. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. The use of interchangeable, field replaceable, SFP+ modules allows for transmission distances of up to 30km (Maximum transmission distance depends on the SFP+ modules used.). Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB (for KVM) and Ethernet.
|
|
CYP SDV-FTX (SDVFTX) Transmitter Extender
|
|
SDV-FTX 4K HDR HDMI / Displayport over Fibre Transmitter (4K UHD, HDMI, USB/KVM, 10Gbit/s)
The SDV-FRX/FTX Transmitter and Receiver set aredesigned to deliver high-quality, IP routable, AV extension with minimum latency. By using a sophisticated ultra-light compression technology (lossless for most content) it’s the perfect solution for extending 4K audio/video signals (HDMI or DisplayPort) and data over long distance. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. The use of interchangeable, field replaceable, SFP+ modules allows for transmission distances of up to 30km (Maximum transmission distance depends on the SFP+ modules used.). Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB(for KVM) and Ethernet.
|
|
