The secret to great lighting is being able to control it. Match your activity or mood to your visual environment. Set the lights as you need them and the setting is automatically saved as one of your custom scenes. Retrieve it later at the touch of a button; no individual switches or dimmers to adjust again and again. The possibilities are endless. In your living room, you can pre-set the lighting controls to suit the way that you live “Cinema”, “Homework”, “Entertaining”, “Cleaning”. Then with a hand-held remote control (or even your universal TV remote), you can change the ambience of your room without leaving your chair. You can control all the lights in one room or indeed the whole house from just one button and control natural light with a motorised window solution. You can also link the lighting controls to your security and AV systems.
Control Units have both a maximum power capacity limit per zone and a maximum power capacity limit per unit. Each zone cannot exceed the total Watts listed on the product, and each unit cannot exceed the total Watts outlined for the product. However, the maximum unit capacity can be allocated among each individual zone in the unit. For example, on a 4-zone unit at 230V with a maximum zone capacity of 800W and a maximum unit capacity of 2300W, some zones will not reach the individual zone maximum because the total unit maximum cannot exceed 2300W. Check total unit maximums before ordering
|
Page 6
( Displaying 10 of 102 Products )
|
|
|
Rako WCM-060 (WCM060) 6 Button Module Electronics
|
|
The WCM-060 connects to the RACOM wired CAT5 network and is pre-configured for dual open, stop and close control for curtains, blinds & projector screens and is used with the RAK4-R.
A hard wired 6 button push button control module that has several fixing options. Based upon the widely used 50x50mm Euro Module switch plate accessory standard. Rako flat plate and screwless switch plate kits are available in a selection of finishes including: White, Brushed, Stainless Steel, Mirrored Stainless Steel, Polished Brass, Black Nickel.
|
|
Rako WCM-030 (WCM030) 3 Button Module Electronics
|
|
The WCM-030 connects to the RACOM wired CAT5 network and is pre-configured for open, stop and close control for curtains, blinds & projector screens and is used with the RAK4-R.
A hard wired 3 button push button control module that has several fixing options. Based upon the widely used 50x50mm Euro Module switch plate accessory standard. Rako flat plate and screwless switch plate kits are available in a selection of finishes including: White, Brushed, Stainless Steel, Mirrored Stainless Steel, Polished Brass, Black Nickel.
|
|
Rako WP-CON
|
|
Rako Wired Lighting WP-CON - Programming Socket Features
Rako Wired Lighting WP-CON - Programming Socket is used to programme a Rako Wired installation with Rako interface modules; WRE-BRIDGE or PC-BRIDGE.
This unit is also required for RS232-BRIDGE, RF-BRIDGE and DMX-BRIDGE to connect to the RANET CAT5 Bus-Cable
Single gang wired connection to RJ11 socket for interfaces complete with white plastic cover plate.
|
|
Rako WAVMI
|
|
Rako Wired Lighting WAVMI - 5 Way Mains Voltage Input Interface Features:-
WAVMI allows mains voltage signals to be detected by a Rako wired system. So, the Rako system can be made aware that certain circuits are active. This includes inputs from Alarm sensors & PIR modules, central heating controls, fan motors – almost anything.
WAVMI must be connected to A RAKO Wired System. The simplest method is by connecting the RJ11 patch lead from the WAVMI to one of the RJ11 sockets on a system RAK-Link or RAK-Star. The RJ11 patch lead may also be plugged into a WA-Con access point. WAVMI has 5 inputs. Each input is a 4 way terminal block.
|
|
Rako WTC-Bridge
|
|
This is now a discontinued product and has been replaced by the WK-HUB
Rako - WTC-BRIDGE - Programmable Lighting Controller - Interface between Wired and Wireless Systems with an Ethernet Interface. Use with iPhone, iPad, Android remote control applications.
One Rako WTC-BRIDGE - Ethernet Interface is required for a whole property - Connects via single Cat-5 cable to a WiFi Ethernet Router
Programmble
|
|
|
|
|
|
|
|
|
|
|
Discontinued
|
|
|
|
Rako WA-Bridge
|
|
Rako Lighting WA-BRIDGE - Interface between Wired and Wireless Systems with an Ethernet Interface.
Rako Wired Lighting WA-BRIDGE - Ethernet Interface Features:-
Rako Lighting WA-BRIDGE - Interface between Wired and Wireless Systems with an Ethernet Interface. Use with iPhone, iPad, Android remote control applications
One Rako WA-BRIDGE - Ethernet Interface is required for a whole property - Connects via single Cat-5 cable to a WiFi Ethernet Router
|
|
Rako RAK-STAR - Wired Lighting
|
|
Rako Lighting RAK-STAR - CAT-5 16 Way Star Wired Distribution Board. Used in Star Wired Installations
Rako Wired Lighting RAK-STAR - CAT-5 16 Way Star Wired Distribution Board Features
Rako Wired Lighting RAK-STAR - CAT-5 16 Way Star Wired Distribution Board. Supports up to 16 CAT 5 cables in a star wired installations.
Provides 12vDC power for all devices connected to RANET CAT5 bus-cable.
Technical
|
|
Rako RAK-LINK
|
|
Rako Wired Lighting RAK-LINK - RAK Dimmer Interface Module Features:-
Rako Wired Lighting RAK-LINK - RAK Dimmer Interface Module - RANET CAT5 Interface. Controls up to 8 RAK4 Light Dimmers in a Wired Lighting Installation.
Each Rako RAK-LINK - RAK Dimmer Interface Module Supports up to Eight RAK4, RAK4L, RAK4F light dimmers.
Provides 12vDC power for all devices connected to RANET CAT5 bus-cable.
|
|

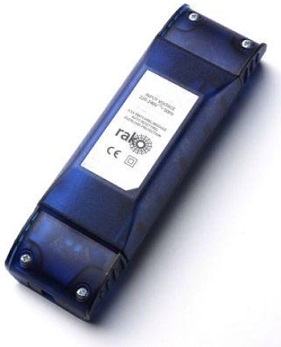

Rako RACUB-24DC (RACUB24DC) Twin Motorised Controller
|
|
Rako Wireless Blinds RACUB-24DC - Twin Relay for 24vDC powered Blind Control. Designed for use with 24vDC electric blinds, screens and curtain tracks
Use with 12/24Vdc motors only. Volt-free contacts, 1A max
Use as part of a Mood Lighting scene setting configuration
Each open/close/up/down command can be activated by any Rako interface
Continuous or momentary activation is provided, enabling full or partial opening of any controlled blind or curtain.
|
|

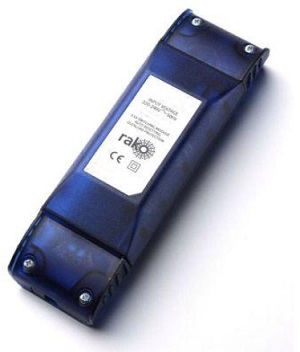

Rako RACUB-2L (RACUB2L) Twin Relay Motorised Controller
|
|
Rako Wireless Blinds RACUB-2L - 240vac Mains Motor Blind Control Features:-
Rako Wireless Blinds RACUB-2L - 240vac Mains Motor Blind Control. Designed for use with 240vac Mains Motor Blinds that need a Single Neutral, then L1 to open, L2 to close
Use with 240Vac motors only, 1A max
Use as part of a Mood Lighting scene setting configuration
Each open/close/up/down command can be activated by any Rako interface
|
|
