Ortofon is the world's leading cartridge manufacturer and supplier of cartridges for turntables.
It was founded in Copenhagen, Denmark in 1918 and initially made soundtracks for movies. In 1948 Ortofon developed its first moving coil cartridge, since then Ortofon now employ over 70 staff and more than 300 different cartridges have been developed and manufactured. This is a result of significant design experience and great technological know-how. Acoustics, materials, technology and micro mechanics are key competences in Ortofon's technological prowess.
Research and development is done with the company's own engineers supported by a strong network of acoustic know-how and industrial design in Denmark.
The Ortofon manufacturing unit in Nakskov in the south of Denmark has modern machinery combined with experienced operators, so human craftsmanship is delivered with uniform industrial quality.
|
Page 7
( Displaying 10 of 94 Products )
|
|
|

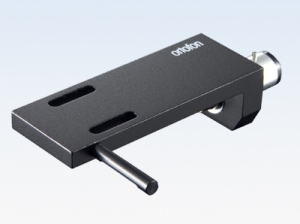

Ortofon LH2000 Headshell
|
|
Ortofon’s headshells comprise of the highest quality materials and add unique distinction to your turntable
The LH-2000 is a basic high quality headshell designed specifically for HiFi use. Providing a clean, minimalist aesthetic, the LH-2000 is great for a wide variety of cartridges.
Solid aluminum build
Weight: 15,8 grams
Mounting distance min 32,5 mm max 41,9 mm
|
|

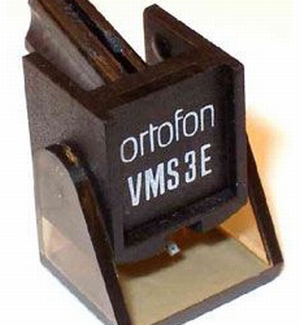

Ortofon Stylus VMS3E
|
|
Technical data
Frequency range 20-22.000 Hz
Frequency response 20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) 50 µm
Compliance, dynamic, lateral 10 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Equivalent stylus tip mass 0,65 mg
Tracking force range 1,7-2,3 g (17-23 mN)
Tracking force, recommended 2,0 g (20 mN)
Tracking angle 20°
Stylus
|
|

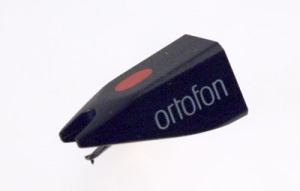

Ortofon Stylus DN 165E
|
|
Technical data
Frequency range 20-25.000 Hz
Frequency response 20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) 70 µm
Compliance, dynamic, lateral 25 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Equivalent stylus tip mass 0,5 mg
Tracking force range 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended 1,5 g (15 mN)
Tracking angle 20°
|
|

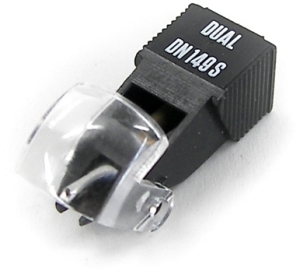

Ortofon Stylus DN 149S
|
|
Technical data
Frequency range 20-20.000 Hz
Frequency response 20-15.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) 60 µm
Compliance, dynamic, lateral 15 µm/mN
Stylus type Spherical
Stylus tip radius r/R 8/18 µm
Equivalent stylus tip mass 0,5 mg
Tracking force range 1,25-2,25 g (17,5-22,5 mN)
Tracking force, recommended 2,0 g (20 mN)
Tracking angle 20°
|
|

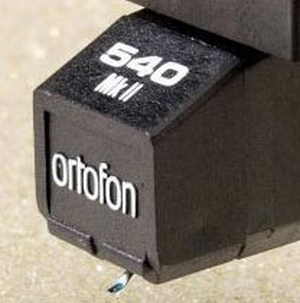

Ortofon Stylus 540 MKII
|
|
Technical data
Frequency range 20-27.000 Hz
Frequency response 20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) 90 µm
Compliance, dynamic, lateral 30 µm/mN
Stylus type Nude FG 70
Stylus tip radius r/R 5/70 µm
Equivalent stylus tip mass 0,3 mg
Tracking force range 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended 1,5 g (15 mN)
Tracking angle 20°
|
|

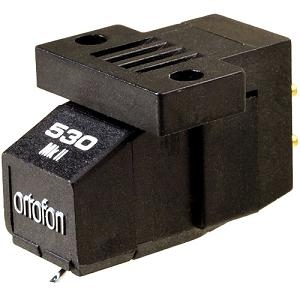

Ortofon Stylus 530 MKII
|
|
Technical data
Frequency range 20-25.000 Hz
Frequency response 20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) 80 µm
Compliance, dynamic, lateral 30 µm/mN
Stylus type Nude Fine Line
Stylus tip radius r/R 8/40 µm
Equivalent stylus tip mass 0,3 mg
Tracking force range 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended 1,75 g (17,5 mN)
Tracking angle 20°
|
|

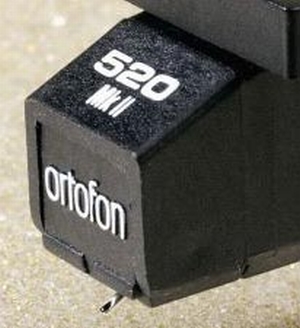

Ortofon Stylus 520 MKII
|
|
Technical data
Frequency range 20-23.000 Hz
Frequency response 20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) 70 µm
Compliance, dynamic, lateral 25 µm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 µm
Equivalent stylus tip mass 0,3 mg
Tracking force range 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended 1,5 g (15 mN)
Tracking angle 20°
|
|

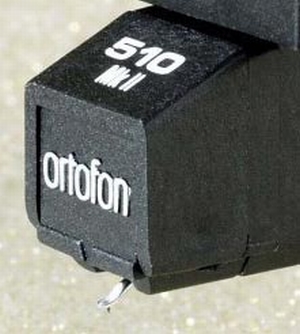

Ortofon Stylus 510 MKII
|
|
Technical Data:
Frequency range 20-23.000 Hz
Frequency response 20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) 70 µm
Compliance, dynamic, lateral 25 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Equivalent stylus tip mass 0,3 mg
Tracking force range 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended 1,5 g (15 mN)
Tracking angle 20°
Stylus
|
|

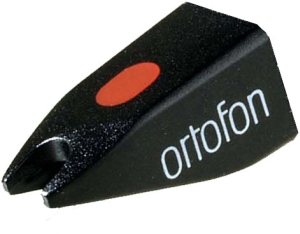

Ortofon Stylus 40
|
|
Technical data
Frequency range 20-30.000 Hz
Frequency response 20-30.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) 90 µm
Compliance, dynamic, lateral 25 µm/mN
Stylus type Nude FG 70
Stylus tip radius r/R 5/70 µm
Equivalent stylus tip mass 0,3 mg
Tracking force range 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended 1,5 g (15 mN)
Tracking angle 20°
|
|
Ortofon Stylus 30
|
|
Technical data
Frequency range 20-29.000 Hz
Frequency response 20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) 90 µm
Compliance, dynamic, lateral 25 µm/mN
Stylus type Nude Fine LIne
Stylus tip radius r/R 8/40 µm
Equivalent stylus tip mass 0,3 mg
Tracking force range 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended 1,5 g (15 mN)
Tracking angle 20°
|
|
