Ortofon is the world's leading cartridge manufacturer and supplier of cartridges for turntables.
It was founded in Copenhagen, Denmark in 1918 and initially made soundtracks for movies. In 1948 Ortofon developed its first moving coil cartridge, since then Ortofon now employ over 70 staff and more than 300 different cartridges have been developed and manufactured. This is a result of significant design experience and great technological know-how. Acoustics, materials, technology and micro mechanics are key competences in Ortofon's technological prowess.
Research and development is done with the company's own engineers supported by a strong network of acoustic know-how and industrial design in Denmark.
The Ortofon manufacturing unit in Nakskov in the south of Denmark has modern machinery combined with experienced operators, so human craftsmanship is delivered with uniform industrial quality.
|
Page 8
( Displaying 10 of 94 Products )
|
|
|

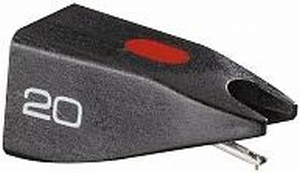

Ortofon Stylus 20
|
|
Technical data
Frequency range 20-27.000 Hz
Frequency response 20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) 80 µm
Compliance, dynamic, lateral 25 µm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 µm
Equivalent stylus tip mass 0,4 mg
Tracking force range 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended 1,50 g (15 mN)
Tracking angle 20°
|
|

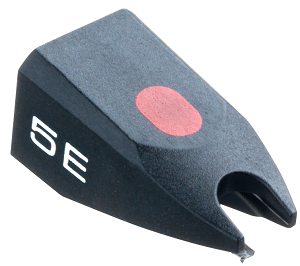

Ortofon Stylus 5E
|
|
Replacement stylus, recommended for the following cartridge models:
OM 5E, OMP 5E, OMB 5E, OMT 5E
Please note, all cartridges within the OM range have the same fitting, so they can all fit the Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Compatibility:
This is the same stylus found pre-fitted to the Pro-Ject Debut III turntable and all its variants, including the Debut USB and Debut Phono Speed Box (except the S/E3). This stylus is also the nearest replacement for the OM3E cartridge, which is pre-fitted to all Pro-Ject Essential turntables, and some Pro-Ject RPM 1.3 Genie models.
|
|
Ortofon OM 5S Magnetic Cartridge
|
|
OM 5S
The Ortofon OM Series encompasses three basic cartridges: OM5S, OM 5E and Super OM 5E. With its classic design, the OM moving magnet cartridge has been featured on innumerable hi-fi turntables over many years, and the latest range gives turntable owners easy access to great sound at an affordable price.
The OM Series is the lowest-mass range of moving magnet (MM) cartridges offered by Ortofon, and combined with their minimal design allowing for easy mounting and alignment and clear, loud output for easy pairing with a phono stage, they fully justify their "Optimum Match" (OM) name.
|
|

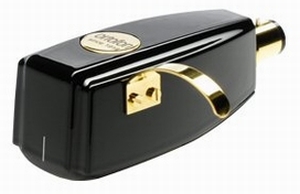

Ortofon SPU Royal GM MKII
|
|
The SPU Royal GM MKII provides a playback experience that embodies the essence of analog, with generous refinements which bring the legendary SPU cartridges into the realm of unrivaled perfection.
The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.
Electrum coils, consisting of a gold and silver alloy, provides uncolored and precise transmission of armature movements while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.
|
|

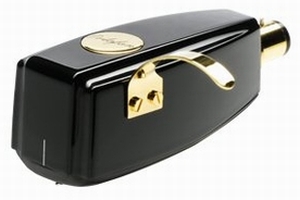

Ortofon SPU Synergy GM
|
|
The SPU Synergy GM modernizes the classic SPU design with a number of optimizations designed for optimum compatibility and sonic purity.
The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 500µV, relaxing the requirement for high gain transformer or active preamplification systems.
While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability.
|
|

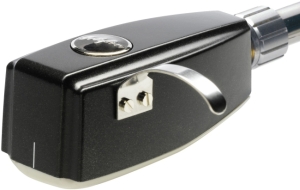

Ortofon SPU Classic GM-E MKII MC Cartridge
|
|
The SPU Classic GM MKII, known for its dynamic and powerful sound reproduction, is a Moving Coil (MC) cartridge with an elliptical stylus profile.
The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.
The SPU Classic GM E MKII’s elliptical stylus profile provides more detailed sound reproduction and expansive imaging.
|
|
Ortofon SPU Classic GM MKII MC Cartridge
|
|
The SPU Classic GM MKII, known for its dynamic and powerful sound reproduction, is a Moving Coil (MC) cartridge with an 18µm spherical stylus profile.
The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.
Techical data
Output voltage at 1000 Hz, 5cm/sec. 200 µV
Channel
|
|

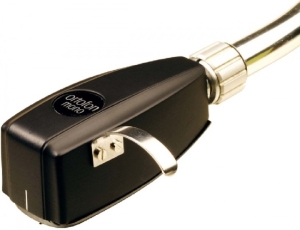

Ortofon SPU Mono GM MKII MC Cartridge
|
|
The SPU Mono GM MKII is a high output Moving Coil (MC) cartridge with a with a spherical stylus profile, for the playback of early 25µm mono recordings.
The SPU Mono GM MKII provides an authentic method of playing back these early vinyl recordings with remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer.
Technical data
Output voltage at 1000 Hz, 5cm/sec. 3 mV
|
|

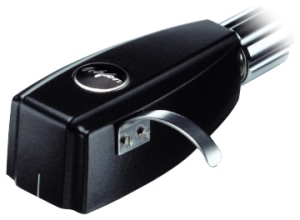

Ortofon SPU Mono CG 25 DI MKII MC Cartridge
|
|
The Mono CG 25 DI MKII is an SPU-style Moving Coil (MC) cartridge with a spherical stylus profile, for the playback of early 25µm mono recordings.
The CG 25 DI MKII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy.
This cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers.
|
|

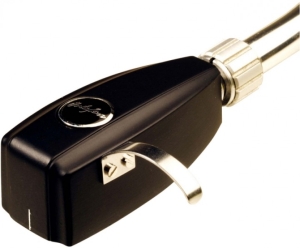

Ortofon SPU Mono CG 65 DI MKII MC Cartridge
|
|
The Mono CG 65 DI MKII is an SPU-style Moving Coil (MC) cartridge with a spherical stylus profile, for the playback of early 65µm mono and 78rpm recordings.
The CG 65 DI MKII provides an authentic method of playing back these early recordings with a remarkable level of sonic accuracy, regardless of the materials used to manufacture these discs.
This cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers.
|
|
