Rako are leading the way in providing state of the art digital dimming technology, manufacturing lighting systems that are simple to use, creative, easily installed and cost effective, making the Smart Home dream a reality. Recall a scene, or mood of lighting at the touch of a single button despite controlling multiple circuits and lamp types. Circuits are split to define zones and highlight room features and then programmed to suit the different uses of a space.
control all light fittings, including the dimming of LED's fluorescent lighting and low voltage fittings, saving energy and increasing lamp life as lamps are dimmed.
Advanced programming features allow master off control from any keypad or maybe a button to create a welcome home scene. The addition of a TCM time-clock module provides 'Holiday Mode' security, timed events and astro dawn/dusk programming.
|
Page 9
( Displaying 10 of 94 Products )
|
|
|
Rako WCM-020 (WCM020) 2 Button Module Electronics
|
|
A hard wired 2 button push
button control module that has
several fixing options.
Based upon the widely used
50x50mm Euro Module switch
plate accessory standard. Rako flat plate and screwless switch plate kits are available in a selection of finishes including: White, Brushed, Stainless Steel, Mirrored Stainless Steel, Polished Brass, Black Nickel.
The WCM-020 push button control module comes pre-configured for
selecting scene 1 and off. Each button is complete with a blue LED
indicator and day-night etched buttons.
|
|
Rako RCM-020 - 2 Button Modular Control Panel
|
|
A wireless 2 button, push button
control module that has several
fixing options.
Lithium battery powered so can
be mounted anywhere without
having to run cabling. The unit
provides full scene
programming.
Based upon the widely used
50x50mm Euro Module switch
plate accessory standard.
Rako flat plate and screwless
switch plate kits are available in
a selection of finishes including:
Brushed Stainless Steel
Mirrored Stainless Steel
Polished Brass
White Metal
Black Nickel*
White Plastic
|
|

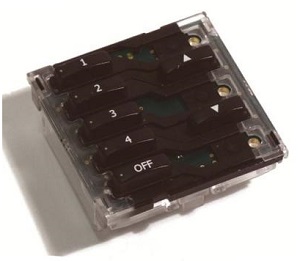

Rako RCM-070 7 Button Control Module
|
|
A wireless 7 button, push button
control module that has several
fixing options.
Lithium battery powered so can
be mounted anywhere without
having to run cabling. The unit
provides full scene
programming.
Based upon the widely used
50x50mm Euro Module switch
plate accessory standard.
WIRE-FREE CONTROL
The RCM070 push button control module comes pre-configured for
selecting 4 scenes, off and master raise & lower. The wall plate
controllers are designed to be mounted anywhere, be it flush
mounting to UK back-boxes or simply surface mounted to any flat
surface using the pattress provided**. It is also suitable for all switch
accessory plates that use a 50x50mm grid and cover plate
arrangement.Rako flat plate and screwless
switch plate kits are available in
a selection of finishes including:
Brushed Stainless Steel
Mirrored Stainless Steel
Polished Brass
White Metal
Black Nickel*
White Plastic
|
|
Rako ACM - Upgrade Module for the RA-Bridge and WA-Bridge
|
|
A plug-in adaptor for a Rako
Bridge (WA, RA) to enable control of
third party audio devices from
Rako transmitters such as RCM
and WCM wall-panels.
The ACM (Audio Control Module) is a compact adaptor board which
connects inside a Rako Bridge and enables 'Maps' from a Rako wallpanel
to be re-transmitted as commands for ethernet based audio systems such
as SonosTM and LinnTM (contact Rako for more details). Configurable using
Rasoft programming software the ACM allows Rasoft to find devices and
allows maps to be created from standard Rako transmissions to 'Audio
Messages'.
|
|
Rako RMT500 Trailing Edge 500W Dimmer Module
|
|
The RMT500 in-line RF dimmer for GU10 LED lamps,
tungsten, low-voltage halogen and other trailing edge
dimmable loads.
Designed to fit in a ceiling void or cupboard, the RMT500 trailing edge
dimmer can control up to 500 watts of mains dimmable lighting loads.
The unit can also be used for exterior lighting control applications, with the
use of a weatherproof IP rated enclosure.
The RMT500 uses trailing edge dimming technology to maximise the
performance
|
|
Rako WTC-Bridge
|
|
This is now a discontinued product and has been replaced by the WK-HUB
Rako - WTC-BRIDGE - Programmable Lighting Controller - Interface between Wired and Wireless Systems with an Ethernet Interface. Use with iPhone, iPad, Android remote control applications.
One Rako WTC-BRIDGE - Ethernet Interface is required for a whole property - Connects via single Cat-5 cable to a WiFi Ethernet Router
Programmble
|
|
|
|
|
|
|
|
|
|
|
Discontinued
|
|
|
|
Rako RTC Bridge-To interface with Rako wireless dimmers with Ethernet
|
|
This product is now discontinued. It has been replaced by the RK-HUB
A powerful network interface for
use with a Rako wireless system.
The RTC-Bridge acts as a
programming interface as well
as having ethernet access for
app control via smartphones and
tablets.
The RTC-Bridge also has a realtime
clock allowing advanced
programming, timed events, and
holiday mode control.
The RTC-Bridge provides the connection between the Rako wireless network and a
laptop running Rako's programming software RASOFT. A laptop can connect to
the RTC-Bridge either directly using a crossover cable or, using a router, via WiFi.
The RTC-Bridge allows full system configuration and programming of a Rako
wireless network.
|
|
|
|
|
|
|
|
|
|
|
Discontinued
|
|
|
|
Rako RAVIR Interface
|
|
IR to RF Interface. Use Any Learning Remote To Operate Rako Modules.
The elegance of any Rako system is demonstrated not only by its simplicity of operation, but also by the number of control options available. The RAVIR is one such option, allowing the use of any standard learning remote control to operate your Rako lights as well!
The RAVIR will convert standard Infra Red commands into RAKO RF commands. This can be achieved either through a dedicated IR receiver or as part of an IR control system, such as those designed by SpeakerCraft.
|
|
Rako RX-Link Module
|
|
RF Receiver Module For RAK4 System.
This compact RF receiver is an integral part of a RAK4 system.
Connecting via Cat 5 cable, the RX-Link is capable of controlling up to four interlinked RAK4 modules.
Utilising Rakom coded RF control, an RX-Link will detect and relay RF commands from all Rako interfaces. These can include RCP keypads, RAV232 modules, the RAVIR, and RAVFR volt-free module.
SPECIFICATIONS
|
|
Rako RMT-PILL Dimmer
|
|
RMT-PILL
250w trailing edge wallbox dimmer. With neutral connection – controls halogen and mains dimming LEDs, no minimum load. Without neutral connection – controls mains voltage halogen only with 60w minimum load.
FLEXIBLE CONTROL
Designed to a fit in a standard UK or European back-box the RMTPill,
whether used with or without a neutral, has full RF receiving
capability and the same programmability as other Rako dimmers. The
“Pill” dimmer is useful for installations where fitting a standard Rako
dimmer is difficult e.g. retro-fitting to control wall-lights.
The RMT-PILL can be controlled from any Rako transmitter such as
RCM wallpanels, RAH hand held, timeclocks and forms an integral
part of a Rako scene-set system. The RMT-PILL dimmer can also be
controlled from a simple momentary action switch giving ON/OFF
control allowing cost effective extra panels. Control from simple
panels still allows the dimmer to be used as part of an overall home
control system with Master Off and macro command response.
|
|
