The AE308 is an all-new subwoofer from Acoustic Energy.
Designed to complement and integrate seamlessly with the other models in the 300 Series, the AE308 offers prodigious performance in both Hi-Fi and AV implementations; making use of a new 500 Watt (RMS) amplifier mated to a 12” high-excursion doped and stiffened pulp-fibre driver, the AE308 also features DSP modes to tailor performance perfectly to desired usage, a first for AE.
In Music mode the AE308 will perform in a balanced, accurate manner, extending low frequencies of the main speakers naturally and seamlessly down to 26Hz (+/-6dB). In Movie mode there will be additional “slam” on offer to aid explosive movie soundtracks in AV systems. Finally Impact mode trades outright extension for maximum volume and serious impact, more akin to a club set-up for when you really want to party hard!

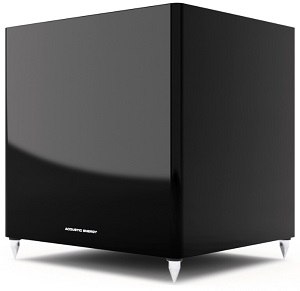

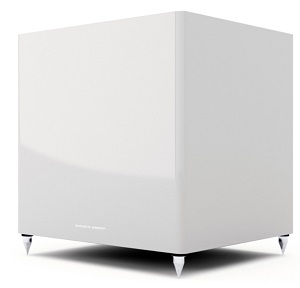

The AE308 is available in attractive real wood American walnut veneer, piano gloss black or white lacquer to match the other 300 Series models and has sturdy carpet-piercing spikes which come with convenient rubber caps for use on hard flooring.
Technical Specifications:-
TWEETER
A new 28mm aluminium tweeter has been developed for the 300 Series which offers high power handling and a low fundamental resonance to reduce distortion. However, the main benefit to this new design is the excellent dispersion characteristics thanks to our Wide Dispersion Technology waveguides. The waveguides shape the acoustic output of the tweeter to match the woofer and provide a wider sweet-spot in your listening environment.
DRIVERS
Tracing its lineage back to the original AE1, the AE300 uses the latest generation of our 130mm mid-bass drive unit. Featuring a brand new shallow profile aluminium sandwich cone with an ultra-high force, long throw motor system. This new driver boasts improved dispersion, extended bass slam and overall power handling.
CABINET
The inert 18mm high density MDF cabinet utilises proprietary bracing technology derived from the award-winning Reference Series, to reduce cabinet colouration and allow the new transducers to breath freely within the listening environment. The slot shaped duct port on the rear of the speaker* augments the bass output and has been carefully developed to reduce the effect of air turbulence with a clean undistorted bass performance.
AE308
Drive Unit:12″ High-excursion doped and stiffened paper cone
Frequency: 26Hz-120Hz +/- 6dB
Power Handling: 500w
Crossover Frequency: 40-120Hz rotary control
Design: Sealed box, downward facing driver
Inputs: Low level stereo RCA, high level stereo binding posts, LFE RCA
Phase: 0-180 degree rotary control
Amp Type: Class D
Dimensions: 360 x 360 360mm (HxWxD)
Weight: 16.5kg
Finishes: Piano Gloss White, Piano Gloss Black and Real Walnut Wood Veneer
