Saturn Series CALYPSO
CALYPSO TUBE LINESTAGE

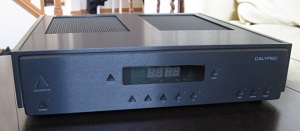

Calypso is an all-tube linestage suitable for audio and home cinema systems. Fully balanced circuitry from input to output, including internal balancing of single-ended inputs, results in common mode signal rejection and cleaner sound. The innovative discrete switched resister volume control maximizes resolution at any listening level. Every input is both single-ended and balanced for greater versatility. Home theatre bypass mode, absolute phase setting and full function remote are added conveniences. The all-aluminum chassis is rigid, acoustically inert and simply beautiful.
•Fully balanced differential circuitry with ability to internally balance a single ended input signal.
•Zero feedback.
•Discrete switched resistor volume control with 88 1dB steps.
•All tube amplification and output (4 tubes total).
•Two sets of XLR and two sets of RCA outputs per channel.
•Bypass mode for home theatre processor throughput.
•Absolute phase, selectable via front panel or remote control.
•Full function remote included.
•Available in black or silver faceplate.
Calypso is available in three versions: Standard, Signature and Eclipse.
The standard version uses high-grade Rel-Cap polypropylene coupling capacitors. The Signature version uses exotic and expensive coupling capacitors and other critical parts to bring the performance to a higher level.
All versions of Calypso can be upgraded by an Aethetix factory trained UK approved Aethetix Service Centre.
CALYPSO SPECIFICATIONS:-
Inputs: 5 line RCA or XLR (balanced), plus 1 tape, RCA or XLR
Outputs: 2 RCA (SE) and XLR (balanced), 1 tape RCA
Line level gain: 23 dB single ended (SE), in/out, and 29 dB balanced/out
Volume control: switched resistor network volume control with 88 1 dB steps
Front panel controls: main input, tape input select, volume, balance, phase, mute, display, and bypass
Remote controls: main input, tape input select, volume, balance, phase, mute, display, bypass and standby
Frequency response: +- 0.25 dB, 20 Hz - 20 Khz
Signal to noise: measured at 70 dB minimum, A-weighted (ref 1 mv input, 75 dB gain setting)
Line input impedance: 40 k ohms SE, 80 k ohms balanced
Maximum line input: 3.5 volts SE, 7.0 volts RMS balanced
Output impedance: 1K ohms SE, 600 ohms balanced
Recommended amplifier load: 10K ohms or greater (SE), 20K ohms or greater (Balanced)
Tubes, each channel: (line section) V1 (12AX7 or equivalent), V2 (6922/6DJ8)
Power consumption: 20 watts standby, 60 watts active
Physical dimensions: 4 3/8" high, 17 7/8" wide, 18" deep including jacks
Shipping weight: 40 lbs.
