Two-Channel Revolution.
The All New STR Power Amplifier
The STR Power Amplifier is the beating heart of
a world-class 2-channel sound system. It delivers
massive power generation, with audiophile-quality
output in a smartly designed component.
Imagine doling out 400 Watts/channel into 8 ohms
(both channels driven). Now visualize a massive
600 Watts/channel into 4 ohms, and an astonishing
800 Watts/channel into 2 ohms! The STR Power
Amp delivers true no-holds-barred performance.
Packed with Innovative Electronics
Inside, the STR Power Amplifier uses two colossal
transformers and multiple high-current output
devices so the most subtle details and dynamic

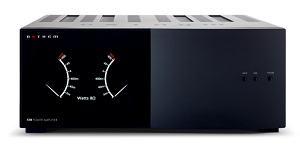

peaks are handled equally well. Outside,
its beautifully designed cosmetics, including a
7-inch graphic control display and secure, highly
conductive audiophile connectors provide a
perfect match to the STR Preamplifier.
Features:-
• 400W / 600W / 800W continuous into 8 /4 /2 ohms,
both channels driven
• Cascoded complementary feedback input stage
• Sixteen bipolar output devices per channel
• Dual Mono Design
• Massive toroidal transformers
• Soft turn-on
• Four power on/off options
• No rail fuses
• Advanced Load Monitoring™ Technology
• Graphic front panel display for the power meter,
status, and easy setup navigation
Technical Specifications:-
STR Power Amplifier:
Output (per channel, continuous, 20 Hz - 20 kHz, < 1% THD): 400 W (8Ω), 600 W (4Ω), 800 W* (2Ω)
THD (400 W): 0.0007% (1 kHz), 0.004% (20 kHz)
IMD (300 W):
ITU-R (19 kHz + 20 kHz): 0.0006%
SMPTE (60 Hz + 7 kHz): 0.0016%
SNR (IEC-A, ref. 400 W): 121 dB
Frequency Response (20 Hz - 20 kHz): ± 0.1 dB
Power Bandwidth (-3 dB at 400 W into 8 ohms): 91 kHz
Slew Rate: 30 V/μs
Damping Factor (20 Hz - 1 kHz): 360
Channel Separation: 101 dB (100 Hz), 98 dB (10 kHz)
Input Impedance : 10 kΩ (RCA), 15 kΩ (XLR)
Input Sensitivity (for 400 W into 8Ω): 2.1 Vrms
Voltage Gain: 29 dB
Power Requirement:
120V version: In countries where the line voltage is 120V, this product operates from a single phase AC power source that supplies
between 108V and 132V at a frequency of 60 Hz.
220V-240V version: In countries where the line voltage is 220V, 230V, or 240V, this product operates from a single phase AC power source
that supplies between 198V and 264V at a frequency of 50 Hz.
Power Consumption:
Standby: 310 mW
Idle: 65 W
Typical Playback Levels: 150 W - 300 W
High Playback Levels: 600 W - 1100 W
Dimensions:
Height: 6-¾” (17.2 cm)
Width: 17” (43.2 cm)
Depth (not including power cord): 18-½” (47 cm)
Weight (unpacked): 60 lb (27.3 kg)
