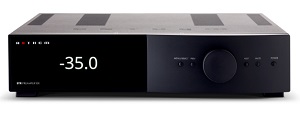

STR Pre Amplifier
The revolutionary STR Preamplifier is a new type of audio component that gives you more control and more refinements, including more connection options and more advanced technology, in a single, easy-to-use component.
Designed, engineered, and Crafted in Canada, the STR Preamplifier combines the benefits of an advanced preamp with the power of a processor, as well as functions like leading-edge DAC, onboard Anthem Room Correction (ARC™), customizable bass manager for mono or stereo sub outs, MM and MC phono inputs—far more than the average preamplifier.
And it includes new generations of many of Anthem’s award-winning, audiophile-loving, review-praised digital signal processing innovations, delivering a noticeably higher level of audio performance realism.
The new STR Preamplifier drives all of your entertainment options today, and tomorrow.
Technical Specifications:-
Phono Preamplifier:
Input Impedance: 100 Ω (MC), 47 kΩ || 270 pF (MM)
RIAA Response (20 Hz - 20 kHz): ± 0.1 dB
Gain (1 kHz - volume set to 0 dB):61 dB (MC), 41 dB (MM)
DSP Mode:
Maximum Input (at 1 kHz for < 0.01% THD 20 Hz - 20 kHz): 3.6 mV (MC), 38 mV (MM)
THD+N (at 1 kHz 20 Hz - 20 kHz BW, 2 Vrms output): < 0.015% (MC), < 0.003% (MM)
THD (at 1 kHz 20 Hz - 20 kHz BW, 2 Vrms output): 0.001% (MC), 0.001% (MM)
SNR (IEC-A, 2 Vrms output):86 dB (MC), 103 dB (MM)
Direct Mode:
Maximum Input Direct Mode (at 1 kHz for < 0.01% THD 20 Hz - 20 kHz): 11.8 mV (MC), 129 mV (MM)
THD+N (at 1 kHz 20 Hz - 20 kHz BW, 2 Vrms output): < 0.008% (MC), < 0.002% (MM)
THD (at 1 kHz 20 Hz - 20 kHz BW, 2 Vrms output): 0.001% (MC), 0.001% (MM)
SNR (IEC-A, 2 Vrms output): 90 dB (MC), 110 dB (MM)
Preamplifier:
Frequency Response:
digital-in, 192 kHz: 10 Hz - 50 kHz (+0, -0.5 dB)
digital-in, 96 kHz: 10 Hz - 45 kHz (+0, -0.5 dB)
digital-in, 44.1 kHz: 10 Hz - 20 kHz (± 0 dB)
analog-in, DSP mode: 10 Hz - 40 kHz (+0.00, -0.20 dB)
analog-in, direct mode: 10 Hz - 80 kHz (+0.00, -0.10 dB)
THD+N (20 Hz - 20 kHz BW, 2 Vrms output):
DSP mode: 0.0006% Digital in, 0.0017% Analog in
Analog Direct Mode: 0.0016%
SNR (at 1 kHz, IEC-A, 2 Vrms output):
DSP mode: 113 dB (digital-in), 108 dB (analog-in)
Analog Direct Mode: 120 dB
Maximum Output ( < 0.1% THD):
RCA connectors (direct and DSP modes): 3.3 Vrms
XLR connectors (direct and DSP modes): 6.6 Vrms
XLR Configuration: Pin 1: Ground, Pin 2: Normal, Pin 3: Inverted
Power Requirement:
This product operates from a single phase AC power source that supplies between 108V and 264V at a frequency of 50 or 60 Hz.
Power Consumption:
Standby: 0.38 W (120V), 0.45 W (240V)
Standby + Network: 1.1 W (120V), 1.2 W (240V)
Typical Use: 10 W
Dimensions:
Height: 3-8/9”(9.93 cm)
Width: 17” (43.2 cm)
Depth (not including power cord):14-5/6”(37.69 cm)
Weight (unpacked): 16.8 lb (7.6 kg)
