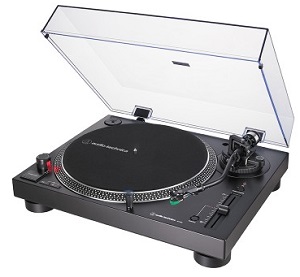

AT-LP120X
Manual Direct-Drive Turntable (Analogue & USB)
•Direct-drive, DC servo motor
•Fully manual operation
•Adjustable dynamic anti-skate control
•Selectable 33/45/78 RPM speeds
•Convert records to digital files via the USB output
•Professional anti-resonance, die-cast aluminium platter with felt mat
Technical Specifications:-
Type: fully manual
Motor: DC servo-controlled
Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
Pitch Variation: +/-8% or +/-16%
Turntable Platter: Die-cast aluminum
Starting Torque: > 1.0 kgf.cm
Braking System: Electronic brake
Wow and Flutter: < 0.2% WRMS (33 RPM)
Signal-to-Noise Ratio: > 50 dB
Output Level: Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
USB Function: PC or Mac with an available USB port (USB1.1 or higher)
Windows 7 or above, or Mac OS X or above A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable;
Computer interface – USB 1.1 Compliant Windows 7 or above, or MAC OS X or above
Power Supply Requirements: 115/230V AC, 60/50 Hz
Power Consumption: 2.75 W
Dimensions: 141,6 x 452 x 352 (H x W x D mm)
Weight: 8.0kg
Accessories Included: AT-VM95E phono cartridge AT-HS6 headshell 1.9 m (6.2') USB cable dual RCA (male) to dual RCA (male) cable with ground wire counterweight felt mat; dust cover 45 RPM adapter
