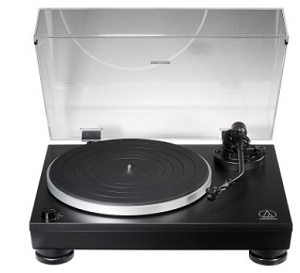

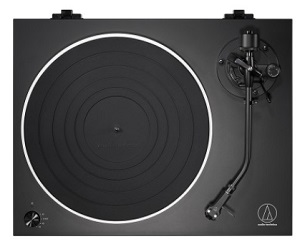

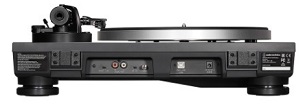

AT-LP5X Fully Manual Direct Drive Turntable
Building on Audio-Technica’s analogue heritage and over 50 years of Japanese audio design, the AT-LP5x features upgraded technology while keeping the contemporary style and acclaimed performance of its predecessor, the AT-LP5.
The LP5x retains the J-shaped tonearm, a design inspired by the classic Audio-Technica models of the 1960s and ’70s, and features a metallic gimbal suspension system and precision bearings to mitigate tracking errors. The tonearm also includes an adjustable counterweight and anti-skate control and comes fitted with a lightweight (9.3g) AT-HS6 headshell and the black AT-VM95E Dual Moving Magnet stereo cartridge.
Constructed of anti-vibration damping materials with heavy-mass metal chassis inserts, the AT-LP5x turntable has been designed to limit low-frequency acoustical feedback. Its precision-machined, die-cast aluminum platter is powered by a direct-drive, low-noise motor, ensuring stable, on-axis rotation at 33-1/3, 45 and 78 RPM. A 5 mm thick rubber-damping mat, which isolates from low frequency feedback while providing a highly stable surface for all LP formats, tops the platter.
The AT-LP5x features a built-in switchable MM/MC phono/line preamp that enables it to connect directly to a computer, home stereo, powered speakers and other components that have no dedicated turntable input. The selection of MM/MC cartridges allow for an easy upgrade to a moving coil with additional equipment. The turntable is also equipped with a USB output for direct connection to a computer.
•Direct-drive, low noise motor
•Fully manual operation with three speeds: 33-1/3, 45 and 78 RPM
•AT-VM95E Dual Moving Magnet stereo cartridge (black) with replaceable stylus
•Lightweight AT-HS6 headshell
•J-shaped tonearm, modeled after original Audio-Technica designs from the 1960s and ’70s, are engineered to minimize tracking errors
•Switchable MM/MC built-in pre-amplifier and line enables connection to components with or without a dedicated phono input
•Anti-resonance, die-cast aluminum platter
•Heavy rubber damping mat for improved low-frequency reproduction
•AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
•Elegant matte black finish
•Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, USB cable
•Included dust cover and mounting hardware
Technical Specifications:-
Drive Method: Direct Drive
Type: 3-speed, fully manual operation
Motor: DC motor
Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
Turntable Platter: Die-cast aluminum
Starting Torque: > 1.0 kgf.cm
Braking System: Electronic brake
Wow and Flutter: < 0.2% WRMS (33 RPM) at 3 KHz
Signal-to-Noise Ratio: > 50 dB
Output Level: PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec LINE 250 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized MC: 56dB nominal, RIAA equalized
USB Function: A/D, - 16 bit 44.1 kHz or 48 kHz USB selectable; Computer interface - USB 2.0 compliant Windows 7 or above, MAC OS X or above
Power Supply Requirements: 100-240V AC, 50/60 Hz
Power Consumption: 3 W
Dimensions: 450.0 mm (17.72") W x 352.0 mm (13.86")D x 157.0 mm (6.18")H
Weight: 7.3 kg (16.1 lbs.)
Accessories Included: AT-VM95E Dual Moving Magnet stereo cartridge (black) with replaceable stylus; AT-HS6 lightweight headshell; AC adapter ; dual RCA (male) to dual RCA (male) stereo cable; 45 RPM adapter; USB cable; dust cover with hinges.
