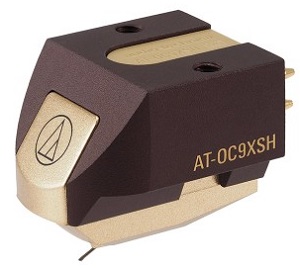

AT-OC9XSH
Dual moving coil stereo cartridge with Shibata stylus
The next Generation of the legendary OC9 cartridge series
Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. Shibata profile diamond originally design for Quadraphonic replay offers a depth of sound, combined with high frequency response that has to be heard to be believed.
•Features nude Shibata stylus and boron cantilever with rich low frequency reproduction and high transient response
•A neodymium magnet and permendur yoke provides dramatically increased magnetic energy
•Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
•Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
•Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer v
Technical Specifications:-
Mounting: 1/2” centers / Threaded inserts
Frequency Response: 20 to 47,000 Hz
Body Material: Aluminium
Channel Separation: 27 dB (1 kHz)
Output Channel Balance: 1.0 dB (1 kHz)
Output Voltage: 0.4 mV (at 1 kHz, 5 cm/sec)
Vertical Tracking Angle: 20 degrees
Vertical Tracking Force Range: 1.8 to 2.2 g (standard 2.0 g)
Stylus Shape: Shibata
Stylus Size: 2.7 x 0.26 mil
Stylus Construction: Nude square shank
Cantilever: 0.28 mm Ø nude boron
Coil Impedance: 12 Ohms (1 kHz)
Coil Inductance: 25 μH (1 kHz)
DC Resistance: 12 Ohms
Static Compliance: 20 x 10 – 6 cm / dyne
Dynamic Compliance: 16 x 10 – 6 cm / dyne (100 Hz)
Terminal Pins: Brass
Wire Used for Coil PCOCC: (Copper by Ohno Continuous Casting process.)
Recommended Load Impedance: Min 100 Ohms
Cartridge Weight: 7.6 g
Dimensions: 17.3 (H) x 16.8 (W) x 25.7 (L) mm

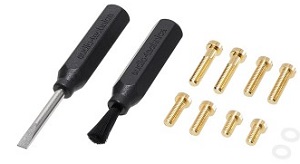

Accessories Included:
1 non magnetic screw driver
1 brush
2 washers
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
