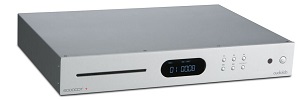

audiolab 6000CDT CD Transport
The 6000CDT is a dedicated CD transport incorporating the same slot-loading mechanism as audiolab’s flagship CD player, the 8300CD. Extremely robust and reliable, it uses a read-ahead digital buffer to reduce disc-reading failures, able to play scratched and damaged CDs that are unreadable by conventional mechanisms.
The onboard digital decoder utilises digital coax and optical outputs to deliver the maximum versatility.
The master clock is controlled by a temperature-compensated crystal oscillator, enabling the digital output from both coaxial and optical sockets to exhibit vanishingly low levels of jitter (digital distortion).
In addition, the coaxial output is fed from a differential line driver to ensure a flawless digital signal reaches the accompanying DAC.
By mounting the transport in its own, electromagnetically shielded enclosure, and including a dedicated power supply, the digital signal extraction from any CD is as accurate and precise as it is possible to achieve.
Technical Specifications:-
Digital Output Voltage Level: 600±50mVpp
Frequency response: ≤ 0.01dB @ 20-20kHz
Output Impedance: 75±1 ohm
Max Sampling Rate: 44.1 KHz
Max. Power Consumption: 15W
Standby Power Consumption: < 0.5W
Power Requirements:
240V ~ 50 - 60Hz
230V ~ 50 - 60Hz
115V ~ 50 - 60Hz
100V ~ 50 - 60Hz
Dimensions (mm ) (W x H x D): 445 x 300 x 65.5 - including feet, terminals and controls
Carton Size (mm ) (W x H x D): 512 x 467x 146
Weight: 5.4kg (Net)
