Beamax M-Tensioned - On-wall and on-ceiling installation
Features:
•Powered by Somfy motor
•Symmetrical aluminum lightweight casing
•Maximum length up to 350 cm
•Custom sizes possible
•Brackets included for on-wall and on-ceiling installation
•Projection fabric falls from the front to hide your flatscreen tv
•Multiple fabrics available
•Several control options
The Beamax M-Tensioned electric screens are a true classic in the Beamax projection screen range.

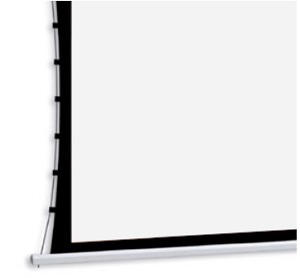

The Beamax M-Tensioned houses a fabric that – once unrolled – is stretched in 4 directions for perfect tension. The result is a perfectly flat projection fabric which is wrinkle free and undistorted. This characteristic is more and more important as the projection quality increases and the resolution becomes higher and higher.
Available Fabrics:
Matt white with black back
Matt white with white back
High contrast white and grey
Micro perforated
Fabric exit from casing:
Standard the M-Tensioned screen has its screen fabric fall from the front. This way you can install the screen to a wall or ceiling and still have the screen fabric in front of a flatscreen or painting on the wall
v
Motor:
Beamax screens are build with high quality tubular motors from Somfy.
Installation of the motor is standard on the right side of the screen (when looking at the front of the screen).
This screen series can also have the motor installed on the left side.
A cable will run from the back of the casing.
The standard installed motor (230V) has 4 wires; common, ground, up and down. A wall switch is included. The available control options only work with the standard motor.
The optional RTS motor, which has an internal RF receiver (RF remote included) has 3 wires; ground, up and down. Power plug not included.
Warranty:
The screen has a 24 months warranty. The Somfy motor has a 36 months warranty.
Top Border:
Fabrics that are available with black borders can have a top black border of 400 mm.*
* With certain screen fabric dimensions there is a limitation to the top border.

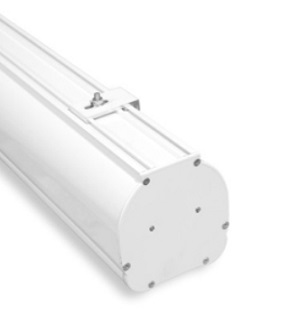

Screen Case:
The standard color for our screen casing is white (RAL9016). The M-Tensioned is also available with a black casing.
