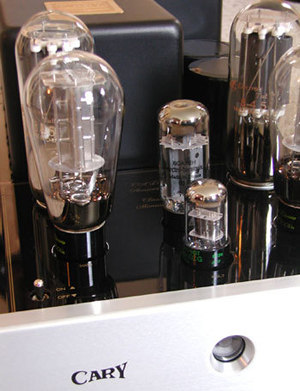

110 Watts per channel in Class A/B, 70 watts per channel in Class A, all Triode tube Mono Blocks with 6CA7 current source, 6SL7 input tube, 300B driver tubes and 845 output tubes. Speaker terminals for 4, 8 or 16 ohm speakers.
read a recent product review
hereWeight:
90 lbs.
Dimensions:
10" H x 12.25" W x 24" D
Circuit Type:
Class A, Class A/B, Pure Balanced Design
Power Output: 110 Watts, Class A/B
70 watts, Class A
Inputs:
Single-Ended RCA; Balanced XLR
Input Sensitivity:
2.0 Volts for full output power
Input Impedance:
100 K ohms input impedance
Noise and Hum: -84 dB
Frequency Response:
18 Hz to 23 KHz, + 0.75 dB
Tube Complement: 1 ea. - 6SL7 Input Stage Tube
1 ea. - 6CA7 Current Source Tube
2 ea. - 300B Driver Stage Tubes
2 ea. - 845 Output Tubes
1 ea. - 1629 'Cat Eye' Power Indicator Tube
Power Transformer(s):
1 ea - EI Laminate, 200% Duty Cycle
Output Transformer(s):
1 ea - EI Laminate, Air Gap, 200% Duty Cycle
Resistors:
1% Metal Film
Capacitors:
Oil-Filled Coupling
Power Supply Capacitors:
4 ea - 1500µF@450 VDC
AC Cord:
3 Conductor, Detachable
AC Power Requirements:
117/234 VAC @ 50/60 Hz
Consumption: 265 Watts - Operation
220 Watts - Standby
Warm-Up Time:
5 Minutes
Break-In Time:
100 hours of playing time
Finish:
Silver Anodized Aluminum Face plate, Jaguar Anthracite Black Steel Chassis
