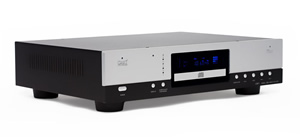

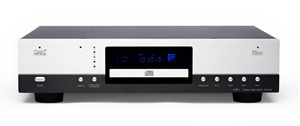

The CDP 1 player uses a 24 bit/192 kHz Burr Brown 1792 DAC chip set and does HDCD decoding in DSP. The player can upsample a CD disk from 44.1 to 96, 192, 384, 512 or 768 kHz. It has XLR and RCA analog outputs. Stylish dual tone silver and black anodized aluminum front panel. IR and RS 232 port control. The CDP 1 is derived from the CD 303/300 CD player that has won the "2005 Product of the Year" from Home Electronics magazine.
The CDP 1 CD Player brings the high-end performance of the CD 303/300 tubed Red Book CD playback section to a lower price point. This certainly makes the CDP 1 a ‘Best Buy’ audiophile CD player! It has 192 kHz, 24 bit Burr Brown 1792 DAC chips in the critical digital to analog converter section. By having the ability to upsample a CD disk from 44.1 kHz to 96, 192, 384, 512 or 768 kHz it can find the perfect sample rate for each disk in your musical library! Discrete RS 232 and Infra Red command codes make it custom installation ready. The CDP 1 is derived from the solid state section of the CD 303/300 CD player that won the "2005 Product of the Year Award" from Electronic House magazine.
Specifications
Triple-beam laser, multi speed CD/DVD ROM transport
Formats: CD AUDIO (CD-DA), CD-R, CD-RW
Master Clock Jitter: Below measurable levels
Digital Filter: CARY DSP-300 with HDCD decoding
Digital/Analog Converters: (2) Burr Brown PCM 1792U
Analog Filter: 3rd Order Bessel

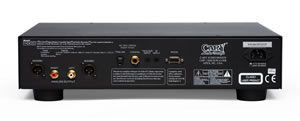

Analog Outputs: Balanced XLR, Single-ended RCA
Digital Outputs: Coaxial, Toslink, Fs from 44.1 kHz 16 bit to 192 kHz 24 bit
Frequency Range: 2 Hz to 22 kHz (44.1 kHz)
Amplitude Linearity: 0.1 dB (20 Hz - 20 kHz)
Phase Linearity: 3 degrees (20 Hz - 20 kHz)
Dynamic Range: 129 dB (1 kHz)
Signal-to-Noise Ratio: 122 dB (1 kHz)
Channel Separation: 104 dB (1 kHz)
THD: 0.003% (1kHz)
Audio Output Level: 3.0V RMS
Balanced: 6.0V RMS
Trigger Input: 12V DC
IR Input: PHILIPS RC 5 IR code
Communications: RS232 full remote/configuration interface
AC Power Input: 100 to 120 or 200 to 240 VAC 50-60 Hz
Power Consumption: 50 watts
