Concept Active - Our all-in-one-system, ready to play.
The concept active package (also available in a ‘wood’ version) is available with either our innovative, frictionless, magnetic bearing concept tonearm or our Satisfy Kardan Aluminium tonearm. Choose too, from our specially developed moving magnet (MM) or moving coil (MC) concept cartridges.
All critical parameters from cartridge tracking weight to anti-skating are preadjusted in our factory. With the concept active’s integrated Clearaudio phonostage, move between headphone listening and listening over amp through your speakers.
The excellent integrated headphone amplifier is suitable for all premium, dynamic headphones.
Total weight:
Approx. 7.6 kg (black/silver)
Approx. 8 kg (wood)
Dimensions:
Width:420 mm Depth:350 mm Height:125 mm
Speed ranges:
33 ⅓, 45 and 78 rpm

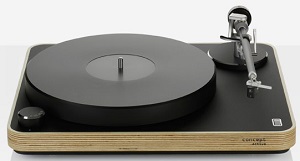

Material/color: Black with silver, black, wood or dark wood chassis
Package combination:
Cartridge: Optional with concept MM or concept MC
Tonearm: Optional with concept or Satisfy Kardan black/aluminium

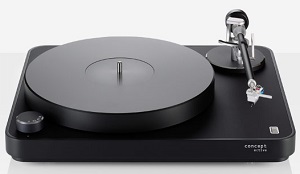

Technical Specifications Concept Active (MM/MC)
Construction Details: Resonance-optimised body, highly compressed wood chassis, core of natural medium-density wood fibre within an aluminium surround and upper layer incorporating a high tech synthetic compound
Speed ranges: 33 ⅓, 45 and 78 rpm
Drive unit: Decoupled and resonance damped DC motor, flat belt-drive and plug-in power supply unit designed for worldwide use with all networks and power frequencies
Bearing: Polished and tempered steel shaft in a sintered bronze bushing, runs on a mirror of Teflon
Platter: Synthetic material, CNC-precision milled surface, 30mm thickness / 1.18 inch. Aluminium subplatter.
Speed accuracy (measured): ± 0.05 %
Power consumption: Max. consumption: 5.5 Watt
Off mode: 0.0 Watt
Of the integrated phonopreamp by 1kHz: +52 dB (MM mode)
+72 dB (MC mode)
Amplification of the integrated phonopreamp by 1kHz: < 0,02 % (MM mode)
< 0,03 % (MC mode)
THD of the integrated phonopreamp: -74 dB (MM mode)
-64 dB (MC mode)
S/N of the integrated phonopreamp: ± 0,5 dB
RIAA accuracy of the integrated phonopreamp: 47 kOhm
Max. output voltage of the integrated phonopreamp: < 10V
Total weight: Approx. 7.6kg (incl. tonearm and cartridge)
Dimensions (W/D/H in mm): Approx. 420 x 350 x 125 (with tonearm)
Warranty: 2 years*
* Only if the Manufacturer's guarantee card is filled out correctly and sent back within 2 weeks to Clearaudio.

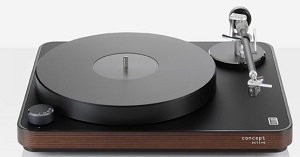

Technical Specifications concept active wood (MM/MC):-
Construction Details: Resonance-optimised body, highly compressed wood chassis, core of natural medium-density wood fibre within a wood surround and upper layer incorporating a high tech synthetic compound
Speed ranges: 33 ⅓, 45 and 78 rpm
Drive unit: Decoupled and resonance damped DC motor, flat belt-drive and plug-in power supply unit designed for worldwide use with all networks and power frequencies
Bearing: Polished and tempered steel shaft in a sintered bronze bushing, runs on a mirror of Teflon
Platter: Synthetic material, CNC-precision milled surface, 30mm thickness / 1.18 inch. Aluminium subplatter.
Speed accuracy (measured): ± 0.05 %
Power consumption: Max. consumption: 5.5 Watt
Off mode: 0.0 Watt
Of the integrated phonopreamp by 1kHz: +52 dB (MM mode)
+72 dB (MC mode)
Amplification of the integrated phonopreamp by 1kHz: < 0,02 % (MM mode)
< 0,03 % (MC mode)
THD of the integrated phonopreamp: -74 dB (MM mode)
-64 dB (MC mode)
S/N of the integrated phonopreamp: ± 0,5 dB
RIAA accuracy of the integrated phonopreamp: 47 kOhm
Max. output voltage of the integrated phonopreamp: < 10V
Total weight: Approx. 8.0 kg (incl. tonearm and cartridge)
Dimensions (W/D/H in mm): Approx. 420 x 350 x 125 (with tonearm)
Warranty: 2 years*
* Only if the Manufacturer's guarantee card is filled out correctly and sent back within 2 weeks to Clearaudio.
