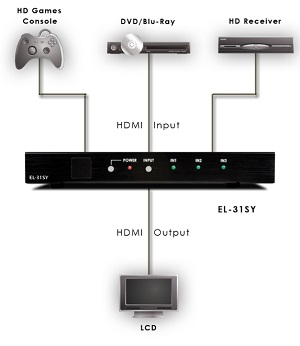

The EL-31SY switcher allows the user to input three HDMI sources and switch between these sources to provide a single HDMI output to a display. This switcher can be controlled via the supplied remote control or by using the input switching button on the front of the device.
Specification:-
•v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
•HDMI 3-way Switcher
•Resolutions Supported: PC - VGA, SVGA, XGA, SXGA, UXGA & WUXGA (1920x1200). HDTV - 480i, 576i, 480p, 576p, 720p, 1080i, 1080p and 1080p24fps.
•High Definition Audio supported - Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM
•Auto signal enhancement feature can improve signal quality after long distance transmission
•IR Remote Control
•Supports 'Deep Colour' (10, 12 & 16 bit)
•LED indicators
•Supports xvYCC
•Supports 3D signals
Inputs 3x HDMI [3x HDMI Uncompressed AV and Data]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
PSU: 5V/1A
Dimensions 200mm [W] x 105mm [D] x 32mm [H]
Net Weight 420g
Gross Weight 640g
