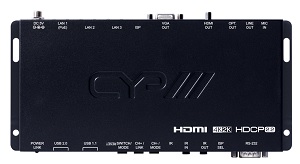

IP-7000RX HDMI or VGA Video Extender (4K) over IP/CEC/PoE
The IP-7000 series allows installers to configure a unique signal distribution system via a dedicated IT Network Infrastructure. You are in control when deciding how many inputs and end-points you require from the system; whether it be one transmitter to many receivers or many to many, your possibilities are endless. Simplicity is at the core of the IP-7000 as both the transmitter and receiver support PoE.
The video and audio can be transmitted via an IP network for distances up to 100m through a single network switch. The transmission distance can be further extended up to 100m between network switches andsupports Gigabit networks.
This system also features bi-directional IR pass-through, analogue line level in/out, and microphone input provide the user with variety of audio options. TheUSB function allows the system to act like USB hub which, when combinedwith the VGA input/Output feature, it allows the system to be used as aKVM switch. Adding extra devices allows the user to cascade the system enabling them to extend the transmission distance without signal loss orintroducing delay. Control is via On-screen Display (OSD), Telnet, IR Remote, WebGUI and RS-232 commands.
Technical Specifications:-
•HDCP 2.2, HDMI & DVI compatible with HDMI and VGA inputs and outputs
•Supports video transmission over IP up to 100m
•Supports input resolutions up to 4K2K @ 30Hz (RGB4:4:4) or 4K2K @ 60Hz (YUV 4:2:0)
•Supports pass through of HD audio formats (LPCM, Dolby® Digital and DTS®)
•Independant Audio Transmission
•Features 2 x USB 1.1 and 2 x USB 2.0 ports
•Supports microphone input on receiver unit
•Control via OSD, Telnet, Web GUI, IR Remote and RS-232
v
Inputs 1x RJ45 [1x PoE HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Microphone]
1x 9pin Dsub [1x RS-232 Data]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
1x 15pin Dsub [1x VGA RGBHV]
2x RJ45 [2x LAN Serving]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
1x Toslink [1x Optical 2 Channel LPCM / DTS / Dolby Digital]
4x USB Type B [4x USB Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
POE PSU: PoE
PSU: 5V/2.6A
Dimensions 108mm [W] x 231mm [D] x 25mm [H]
Net Weight 670g
Gross Weight 1140g
