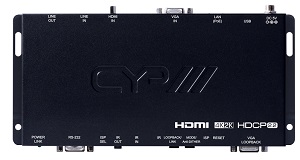

IP-7000TX HDMI or VGA Video Transmitter (4K) over IP/CEC/PoE
The IP-7000 series allows installers to configure a unique signal distribution system via a dedicated IT Network Infrastructure. You are in control when deciding how many inputs and end-points you require from the system; whether it be one transmitter to many receivers or many to many, your possibilities are endless. Simplicity is at the core of the IP-7000 as both the transmitter and receiver support PoE.
The video and audio can be transmitted via an IP network for distances up to 100m through a single network switch. The transmission distance can be further extended up to 100m between network switches and supports Gigabit networks.
This system also features bi-directional IR pass-through, analogue line level in/out, and microphone input provide the user with variety of audio options. The USB function allows the system to act like USB hub which, when combined with the VGA input/Output feature, it allows the system to be used as a KVM switch. Adding extra devices allows the user to cascade the system enabling them to extend the transmission distance without signal loss or introducing delay. Control is via On-screen Display (OSD), Telnet, IR Remote, WebGUI and RS-232 commands.
Technical Specifications:-
•HDCP 2.2, HDMI and DVI Compatible with HDMI and VGA input
•Supports video transmission over IP up to 100m
•Supports resulutions up to 4K2K @ 30Hz (RGB 4:4:4) or 4K2K @ 60Hz (YUV 4:2:0)
•Supports pass through of HD Audio formats (LPCM, Dolby® Digital and DTS®)
•Independant Audio Transmission 3.5mm Jack
•Features 2 x USB 1.1 and 2 x USB 2.0 ports
•3 x RJ45 LAN Ports
•Mic Output 3.5mm Jack
•Control via OSD, Telnet, Web Gui, IR Remote and RS-232
Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
1x 15pin Dsub [1x VGA RGBHV]
1x 9pin Dsub [1x RS-232 Data]
1x USB Type A [1x USB Propriety Data]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
Outputs 1x RJ45 [1x PoE HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
1x 15pin Dsub [1x VGA Loop RGBHV]
POE PSU: PoE
PSU: 5V/2.6A
Dimensions 108mm [W] x 231mm [D] x 25mm [H]
Net Weight 660g
Gross Weight 1130g
