PU-1107RX Pure digital HDMI over Single CAT6 Receiver
The PU-1107RX can receive a pure digital HDMI signal over a Single CAT6 cable allowing HD Audio & 'deep colour' support. This Receiver unit is designed to be used with the PU-1107TX to extend HDMI to a single screen, and the PU-Q1H8CS Splitter for converting the splitters' single CAT6 outputs, back to HDMI for connection to your displays.
•v1.3 HDMI, HDCP 1.1, DVI 1.0 compliant
•Pure digital v1.3 HDMI over single CAT6 Receiver
•Resolution supported : HDTV - 480i to 1080p plus 1080p 24fps.
•Resolution supported : PC - VGA to WUXGA
•High Definition Audio supported : Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM.
•Supports CEC bypass
•Supports xvYCC
•Equalises and recovers incoming TMDS data before re-transmitting to ensure optimum signal quality.
•Supports Deep Colour : 10 and 12 bit
•Supports 3D signals
Technical Specifications:-
Inputs 1x RJ45 [1x HDMI & Propriety Data]

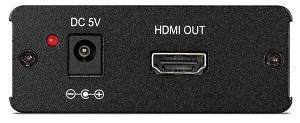

Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
PSU: 5V/1.2A
Dimensions 79mm [W] x 75mm [D] x 30mm [H]
Net Weight 280g
Gross Weight 380g
