PU-1107TX Pure digital HDMI over Single CAT6 Transmitter with Repeater function

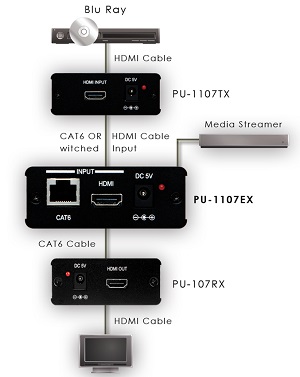

The PU-1107TX can transmit a pure digital HDMI signal over a Single CAT6 cable allowing HD Audio & 'deep colour' support. This Transmitter unit is designed to be used with the PU-107RX receiver to extend HDMI signals to a single screen, with the added benefit that it can be used with the PU-1107EX Extender, for achieving even greater distances.
Specification:-
•v1.3 HDMI, HDCP 1.1, DVI 1.0 compliant
•Pure digital v1.3 HDMI over single CAT6 Transmitter with Repeater function
•Resolution supported : HDTV - 480i to 1080p plus 1080p 24fps.
•Resolution supported : PC - VGA to WUXGA
•High Definition Audio supported : Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM.
•Supports CEC bypass
•Supports xvYCC
•Equalises and recovers incoming TMDS data before re-transmitting to ensure optimum signal quality
•Enables CAT6 cable lengths of up to 40m 1080p 8bit video
•Supports 3D signals
Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
Outputs 1x RJ45 [1x HDMI & Propriety Data]
PSU: 5V/1A
Dimensions 80mm [W] x 102mm [D] x 32mm [H]
Net Weight 300g
Gross Weight 380g
