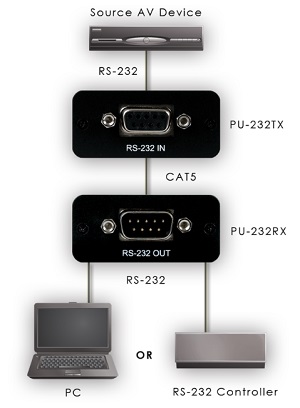

The CAT5/6 RS-232 extender is a hardware-based solution providing control of any RS-232 protocol device. This transmitter and receiver set will extend the control of RS-232 for over 250 meters. The RS-232 extender also provides full duplex transmission and hardware handshake signals, with no need for any set up or configuration.
Specification:-
•Extends any RS-232 compliant device up to 250 metres from the source to display
•Requires only one CAT5/6 cable
•Perfect for digital signage applications
•Baud Rate: 110~921600. Data bit: 8bit
• Simple installation and operation
Inputs (RX) 1x RJ45 [1x RS-232 Propriety Data]
(TX) 1x 9pin Dsub [1x RS-232 Data]
Outputs (RX) 1x 9pin Dsub [1x RS-232 Data]
(TX) 1x RJ45 [1x RS-232 Propriety Data]
PSU: 5V/1.2A
Dimensions (TX) 50mm [W] x 70mm [D] x 25mm [H]
(RX) 50mm [W] x 70mm [D] x 25mm [H]
Net Weight (TX) 130g (RX) 130g
Gross Weight 380g
|
