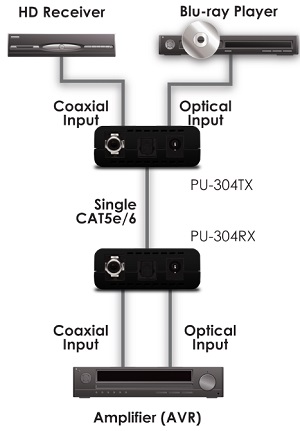

The PU-304-KIT is designed to send digital audio signals over 150m over CAT5e/6 cable infrastructure. This device supports both Coaxial and Optical signals and can transmit these signals up to 150m. The PU-304-KIT can be powered using a USB cable or the supplied PSU adaptor for added flexibility in a compact design. Digital SPDIF signals are supported up to a sample rate of 96Khz, and support for Stereo and Multichannel digital audio (LPCM, DTS, Dolby Digital, Dolby Digital Plus) is also provided.
•Supports Coaxial or Optical digital audio SPDIF signals.
•Supports Stereo and Multichannel digital audio (LPCM, DTS, Dolby Digital, Dolby Digital Plus).
•Supports sample rate up to 96kHz.
•Dual transmission 1 x Coaxial and 1 x Optical
•Signals can be extended over single CAT5e/CAT6 up to 150m
Inputs
(PU-304RX) 1x RJ45 [1x Digital Audio Propriety Data]
(PU-304TX) 1x RCA [1x Coaxial 2 Channel LPCM / DTS / Dolby Digital /
Dolby Digital Plus]
1x Toslink [1x Optical 2 Channel LPCM / DTS / Dolby Digital / Dolby Digital Plus]
Outputs
(PU-304RX) 1x RCA [1x Coaxial 2 Channel LPCM / DTS / Dolby Digital / Dolby Digital Plus]
1x Toslink [1x Optical 2 Channel LPCM / DTS / Dolby Digital / Dolby Digital Plus]
(PU-304TX) 1x RJ45 [1x Digital Audio Propriety Data]
PSU: 5V/1A USB
Dimensions (PU-304RX) 55mm [W] x 85mm [D] x 22mm [H]
(PU-304TX) 55mm [W] x 85mm [D] x 22mm [H]
Net Weight (PU-304RX) 60g (PU-304TX) 60g
Gross Weight 380g
