PU-305BD-RX Bi-Directional Digital Audio over Single CAT Receiver
The PU-305BD-RX is designed to receive digital audio signals up to 300m over CAT5e/6 cable infrastructure. This device is Bi-Directional and supports Digital Optical signals allowing transmission up to 300m at 96KHz sample rate, or 100m at 192KHz sample rate.This extender set also supports RS-232 signals over the same CAT5e/6 cable. The PU-305BD-RX can be powered at either end using the supplied PSU adaptor for added flexibility. Digital audio signals are supported up to a sample rate of 192Khz, and support for LPCM Stereo and Multichannel digital audio (LPCM, DTS, Dolby Digital, Dolby Digital Plus) is also provided.

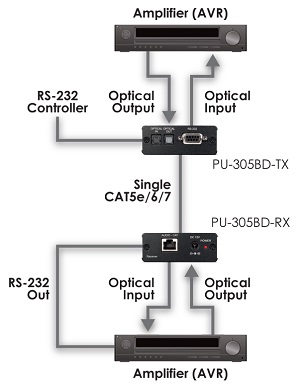

The PU-305BD-RX is designed to work with the PU-305BD-TX receiver or the PU-305BDA-TX analogue transmitter.
The PU-305BD-KIT is perfect for multi-room AV systems where the optical audio from a HDTV or amplifier can be routed back to a rack matrix for further distribution throughout a wider multi-room AV system.
Specification:-
•Supports Optical SDPIF Input & Output, plus RS-232
•Supports up to 24bit 192kHz audio signals
•Supports 192kHz audio up to 100m and 96kHz or lower audio up to 300m
•Supports LPCM, DTS, Dolby Digital and Dolby Digital Plus signals
•Supports PoE (Power over Ethernet) via a single PSU which can be connected at either end of the extender set
Inputs 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM / Dolby Digital Plus]
Outputs 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM / Dolby Digital Plus]
1x 9pin Dsub [1x RS-232 Data]
PSU: Bi-directional POE,12V/1.25A
Dimensions 75mm [W] x 80mm [D] x 25mm [H]
Net Weight 160g
Gross Weight 280g
