PU-305BDA-RX Bi-Directional Analogue Audio over Single CAT Receiver

The PU-305BDA-RX is an analogue Stereo over CAT5e/6/7 Receiver which can send and receive analogue audio signals over a single run of CAT5e/6 cable up to 300m. It has the added benefit of RS-232 pass-through allowing control of devices and the Power over Ethernet (PoE) function can power the receiver unit eliminating the need for a second power supply. As the unit has bi-directional capabilities, this device can also send audio signals back to the connected transmitter.

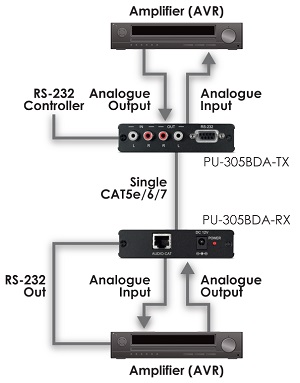

This receiver is designed to be used with the PU-305BDA-TX Analogue Audio Transmitter or the PU-305BD-TX Digital Audio Transmitter. When combined with the PU-305BD-TX digital transmitter, the analogue audio signal will be converted and outputted as digital audio by the transmitters' built-in digital to analogue converter (DAC).

Specification:-
•Supports bi-directional transmission (in/out) of analogue audio and RS-232 pass-through
•Supports Power over Ethernet (PoE) to the Receiver unit
•Bi-directional RS-232 control
Inputs 2x RCA [1x Analogue Stereo (L/R)] 1x RJ45 [1x Bi-directional Audio plus Propriety Data]
Outputs 2x RCA [1x Analogue Stereo (L/R)] 1x 9pin Dsub [1x RS-232 Data]
PSU: Bi-directional POE
Dimensions 100mm [W] x 110mm [D] x 25mm [H]
Net Weight 120g
Gross Weight 360g
