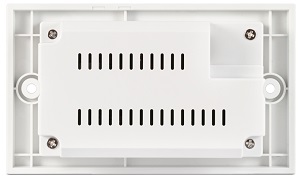

The PU-507WPRX allows uncompressed HDMI signals and IP data to be transmitted over a Single CAT5e/6/7 cable. This device features full 5-Play convergence allowing the distribution of Video, Audio, LAN serving, Power over Ethernet (PoE), RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres. This wall plate variant of the PU-507-RX receiver enables seamless integration into a standard double-gang back box.
Specification:-
Supports all v1.4 HDMI resolutions plus 4k.
•Supports uncompressed video/audio up to 10.2Gbps
•Common supported resolutions : HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA
•HDMI, HDCP, & DVI compliant
•Supports HDCP repeating and CEC functions
•Uncompressed data transfer over single CAT cable (100m - CAT6/7; 80m - CAT5e)
•Uncompressed video 1080p, 60Hz, 48bits
•Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
•5-Play™ convergence: HDMI, LAN, POE & Control (IR & RS232)
•Supports 3D signals
Inputs: 1x RJ45 [1x HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data]
1x 9pin Dsub [1x RS-232 Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
1x RJ45 [1x Ethernet (I/O) IP]
Dimensions: 145mm [W] x 40mm [D] x 85mm [H]
Net Weight: 360g
Gross Weight: 540g
