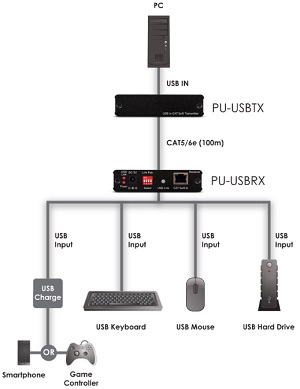

The PU-USB-KIT is a USB over CAT5e/6 transmitter and receiver that has been developed to extend USB devices over long distances via CAT5e/6 cable infrastructure. This kit allows any USB host to send data within a 100m range while offering up to 4 USB outputs, giving this product the ability to act like a USB hub.
Specification:-
•Supports all major operating systems including Windows®, MAC OS®, and Linux
•Supports USB 2.0 high-speed and USB 1.1 (full-speed, low-speed) devices
•True plug and play without the need to install drivers
•Display or control the host device
•Proven up to 100m CAT5 cable distance without lag
•Each USB port carries 500mA of power
•Total transmission frequency 1 GHz
PU-USBRX
Inputs 1x RJ45 [1x USB & Propriety Data]
Outputs 4x USB Type A [4x USB & Propriety Data]
PSU: 5V/3.6A
Dimensions 104mm [W] x 95mm [D] x 26mm [H]
Net Weight 560g
PU-USBTX
Inputs 1x USB Type B [1x USB Propriety Data]
Outputs 1x RJ45 [1x USB & Propriety Data]
PSU: 5V/2.6A
Dimensions 103mm [W] x 95mm [D] x 27mm [H]
Net Weight 200g
