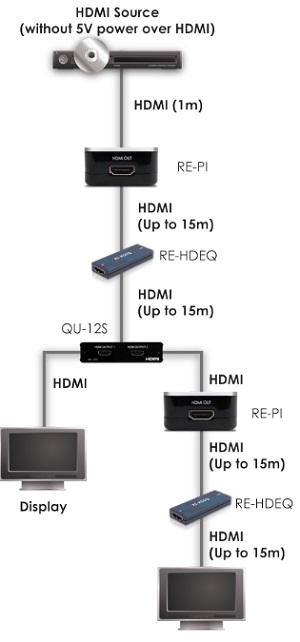

The RE-HDEQ is a mini HDMI equaliser enabling the user to extend their HDMI cable lengths up to 15m either side of the device. Resolution support up to 1080P 24fps and 3D compatibility makes this product a simple, yet very effective way of extending HDMI cable capabilities. Please note that the RE-HDEQ requires power to be received via the HDMI source, so it is important to ensure that the HDMI source being used is capable of providing the standard 2W power supply via HDMI as is common on many HDMI sources. For sources which do not have power via HDMI, CYP recommend the use of the RE-PI Power Inserter product, designed to be used alongside the RE-HDEQ.
Specification:-
•Supports TMDS equalisation and CDR (Clock Rate Recovery) for extended HDMI cable range.
•Input/Output Resolutions: Output resolution follows Input : PC: VGA (640×480) to WUXGA/RB (1920×1200); HDTV: 480i to 1080p + 1080P 24fps.
•Requires HDMI source to output power via HDMI cable to power Enhancer (2W as standard).
•RE-HDEQ is capable of receiving and transmitting 2.25Gbps.
•Supports HDMI cable distance of 15m either side of the device at full 1080p.
•No PSU required
Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
Dimensions 25mm [W] x 65mm [D] x 10mm [H]
Net Weight 10g
Gross Weight 60g
|
