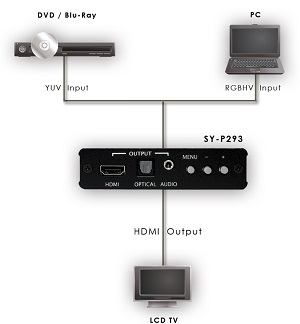

The SY-P293 is designed to scale analogue video signal from a PC source to a digital HDMI output boasting a wide-range of HDTV and PC resolutions. Audio is combined with HDMI video output. This unit offers a selection of colour space and adjustment to obtain the best picture quality.
Specification:-
•v1.2 HDMI, HDCP 1.1 and DVI 1.0 compliant
•PC to HDMI Scaler Converter with Audio
•Scales any PC resolutions to PC or HDTV resolutions
•Resolutions Supported: PC - VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA. SD/HD - 480i, 576i, 480p, 576p, 720p, 1080i and 1080p
•Audio Support: Analogue Stereo, Digital stereo PCM, DTS, and Dolby Digital. Simply select from the audio input source this is then outputted to HDMI, Optical (Toslink), and mini-jack (stereo only) simultaneously
•On Screen Menu with push button control
•Provides output picture adjustment on contrast, brightness, hue, saturation, sharpness, RGB (colour tone) level and aspect ratio size
•Automatic detection of the factory setting of the connected display and output the corresponding resolution and refresh rate, when the NATIVE output is selected (default setting)
Inputs 1x 15pin Dsub [1x PC RGBHV]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM]
PSU: 5V/2.6A
Dimensions 102mm [W] x 154mm [D] x 25mm [H]
Net Weight 700g
Gross Weight 1000g
