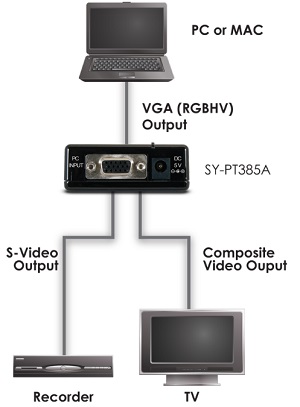

The SY-PT385A is a PC to Video scan converter which is designed to convert a variety of PC analogue video signals from VGA to WUXGA. This device also converts between interlaced NTSC or PAL video and features a frame rate conversion function in addition to an Overscan / Underscan function that allows users to view PC source on a Composite or S-Video monitor without cropping the images.
Specification:-
•Automatically detects and converts incoming PC images to NTSC or PAL
•Supports high resolution PC inputs from VGA to WUXGA
•Downscales PC video to Composite/S-Video
•Supports Image Overscan/Underscan
•Supports ADC conversion
Inputs 1x 15pin Dsub [1x RGBHV]
Outputs 1x RCA [1x Composite]
1x S-video plug [1x S-video]
PSU: 5V/2.6A
Dimensions 60mm [W] x 110mm [D] x 20mm [H]
Net Weight 100g
Gross Weight 400g
|
