The iScan Mini features advanced 4K Ultra HD scaling and video enhancements for pristine video quality. Its compact size makes it an ideal add-on behind a home theater rack or TV.
iScan Mini is a compact yet powerful video enhancement system that improves the picture quality of SD and full HD content. Incorporating Silicon Image’s proprietary VRS®ClearView™ technology, iScan Mini features advanced 4K adaptive scaling, internet streaming noise reduction, as well as edge and detail enhancement to deliver pristine video quality on 4K Ultra HD and full HD displays. A built-in demo mode allows side by side comparison of before and after video to showcase the power of iScan Mini, and a full set of setup tools enable professional display adjustment. iScan Mini can be used as a stand-alone device to improve any display and is the perfect mate to an existing DVDO video processor adding 4K scaling and advanced video enhancement to a iScan Duo, EDGE Green or Quick6.
Key Features:-
•VRS®ClearView™ Technology
•Internet Video cleanup
•Detail and Edge enhancement for increased image depth and clarity
•Scaling up to 4K/60
•Demo mode for side-by side before/after comparison of enhancements
•On-Screen Video EDID editing
•Displaly set-up test patterns for sharpness, brightness, contrast, and more
•Digital Audio stripping to S/PDIF
•IR input port
•Dedicated remote for easy mode changes
Technical Specifications:-
Video Format Output:
VGA, SVGA, XGA, SXGA, 480p, 576p, 720p50, 720p60, 1080i50, 1080i60, 1080p24, 1080p25, 1080p30, 1080p50, 1080p60, 4K24(3840), 4K24(4096), 4K25(3840), 4K30(3840), 4K50(3840) 4:2:0, 4K60(3840) 4:2:0
Standard specification:
HDMI 2.0
Display Setup Patterns:
Primary 75%Colors, PLUGE, Sharpness, Focus, Color Bars, etc.
Firmware Upgrade:
Simple field upgrade via USB for features
and pattern loading

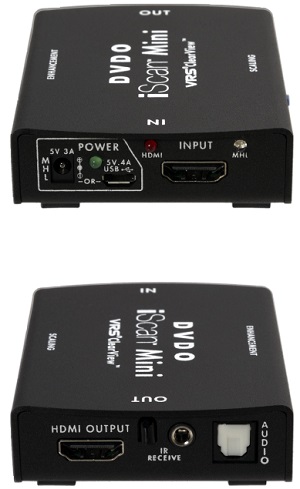

Interface / Port
Side Panel:
1 x HDMI2.0/MHL2.0 Input
1 x USB 2.0 power and control
1 x DC input (1.7x4mm)
5V@1A or 5V@3A when using MHL input.
1 x HDMI 2.0 output
1 x 1.8” stereo mini jack IR receive dongle
1 x Direct IR receive
1 x S/PDIF optical audio out
3 x control buttons
(Enhancement, Scaling, F/W Update)
Dimension (L x W x H)
80 x 63 x 20 mm (3.1 x 2.5 x 0.8 inches)
Weight
2 Ibs
