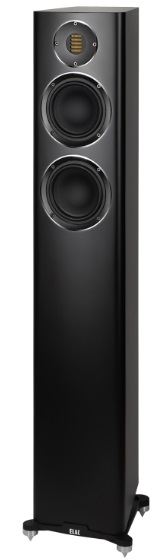

Carina FS247.4
Developed from the renowned award winning 240 series.
Building upon its performance, Carina continues ELAC’s tradition of utilizing the JET tweeter, chosen for its amazing clarity, dynamics and attack. To match this capability, a new in-house developed proprietary compound curvature aluminum coned woofer is seamlessly blended via a sophisticated
multi-element xover to produce an organic life like sound experience. Fresh looks, fresh sound; the new Carina is destined to further enhance ELACs class leading reputation.
CARINA SERIES FEATURES:-
Jet Folded Ribbon Tweeter:
Delivering true high-definition sound,
ELAC’s JET tweeters enthrall with its
lightning-fast response and wide dynamic
range, offering minimal distortion, lots of
headroom and a wider frequency range.
The ELAC JET tweeter is one of the
most legendary tweeters in the industry
and has won international praise with its
transparent and effortless sound image.
Sophisticated Compound Curvature Aluminum Woofer:
To match the capabilities of the JET
tweeter and guarantee a seamless
transition from the woofer to the JET
tweeter, the compound curvature cone
has been developed to control the cone
breakup and move it well beyond the
operating range of the woofer.
A large diameter voice coil and oversized
vented pole piece magnet combine to
give remarkable bass dynamics and a rich
powerful performance.
Downward Firing Ports:
For a more flexible speaker placement
and to minimize ventilation noise, the
bass reflex port on the Carina series is
directed to the floor, exiting the bottom
of the speaker cabinet in a down-firing
configuration.
Technical Specifications:-
Type: 2-1/2 way Vented box
Woofer: 2 x Aluminum cone 5-1/4″
Tweeter: JET folded ribbon
Crossover frequency: 250Hz / 2.5kHz
Frequency range (IEC 268-5): 34Hz – 30kHz
Sensitivity: 87dB/2.83V/1m
Recommended amplifier power: 30 to 250 wpc
Peak power handling: 120W
Nominal | Minimum impedance: 6 Ohm / 4.8 Ohm
Finishes: Satin Black, Satin White
Accessories included: Binding post straps, outrigger feet, spikes and discs
Net Weight (each): 36.20 lbs
Dimensions (HxWxD): 08.52 x 08.06 x 42.07
