The IC 1005 marks the entry into the world of built-in loudspeakers. Its compact external and fitting dimensions make it ideal for installation in walls or ceilings. Not only is it perfect for virtually invisible stereo or multichannel installations, it also makes an excellent addition to conventional floorstanding or bookshelf loudspeakers. The IC 1005 is easy to install, extremely robust, and blessed with absolutely authentic sound.
The compact IC 1005 combines high-quality sound with exceptional ease of installation. The coaxial configuration with its uniform
radiation characteristics is capable of filling large listening areas. The 130 mm fiberglass-reinforced polypropylene membrane not only
ensures authentic reproduction of the critical mid-frequency range, but also packs a powerful punch in the bass range. The 20 mm
fabric dome guarantees accurate reproduction of the high-frequency range.

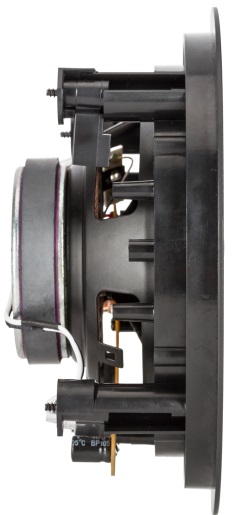

The magnetically-fixed cover grille of the IC 1005 can be removed and refitted without the need for tools. Since the grille covers the
entire loudspeaker, the IC 1005 can be color-coded to its surroundings simply by painting the grille. The loudspeaker itself with its
four-piece clamping mechanism can remain in place. The IC 1005 can be installed in wall or in-ceiling structures up to 35 mm thick. A
fitting template is included to aid installation.
The impedance of 6 ohms enables effective use of the amplifier. It also allows to connect two IC 1005 units in parallel to conventional
AV receivers or amplifiers, where the high efficiency makes the most of the available power.
Technical Specifications:-
Speaker type: 2-way, rear side open
Tweeter: 1 x 20 mm dome
Woofer: 1 x 130 mm cone
Crossover frequency: 2,200 Hz
Frequency response: 40 to 25,000 Hz
Sensitivity: 87 dB at 2.83 v/1m
Recommended amplifier power: 20 to 120 wpc
Nominal/peak power handling: 50 / 70 wpc
Nominal impedance: 6 Ω; min. 6.3 Ω @ 1900 Hz
Magnetic shielding: No
Finish: White Grill
Dimensions: diameter x depth: 8.07 in / 205 mm x 84 mm / 3.31 in
Fitting Dimensions: diameter x depth: 7.09 in / 180 mm x 82 mm / 3.23 in
Weight: 2.2 lb / 1.0 kg
