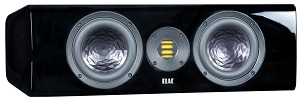

ELAC Vela CC401
Breathtaking design and excellent technical ability combine to ensure class-leading performance
A sophisticated design: high-class lacquered and wooden veneered cabinets, which have a trapezoid shape and are angled rearward meet brushed aluminum.
The design of Vela Series is eye-catching on the one hand but supportive of smooth sound replication on the other. The sound of Vela shows it´s direct connection
to the highly successful 400 Series, but the new Vela Series offers even more: The new waveguide which minimizes baffl e refl ections, the specially shaped baffl e
itself and the angling of the cabinet – they all improve the defi nition of sound.
Together with drivers which have been optimized to reproduce high-energy transients more precisely the Vela Series comes prepared also for rooms with the latest interior design.
Form follows Function
The convex shaped baffle and the big radiuses of the cabinet promote the acoustics because influences of cabinet to frequency response are reduced.
Natural Ventilation
Dual-flared port tubes minimize the ventilation noise during bass reproduction.
The bottom plate is madeof aluminum and is featured with a down-fi ring bass
reflex port which gives advantages in positioning the speaker.
Vela Series offers connectivity which grants the possibility for bi-wiring and bi-amping. And to ensure an optimal electrical connection the terminals and bi-wiring bridges of Vela are gold-plated.
Technical Specifications:-
Height x Width x Depth 191 x 653 x 233 mm
Weight 11,8 kg
Type 2 ½-Way, bass reflex
Woofer 2 x 150 mm Ø, AS XR
Midrange cone
Tweeter (150 mm)
Magnetic shielding JET 5 v
Frequency range (IEC 268-5) 32 – 50000 Hz
Sensitivity 88,5 dB at 2,83 V/m
Suitable for amplifiers from 4 – 8 Ω
Recommended amplifier power 40 – 250 W/channel
Nominal | Peak power handling 120 W | 160 W
Nominal | Minimum impedance 4 Ω | 3,6 Ω at 180 Hz
