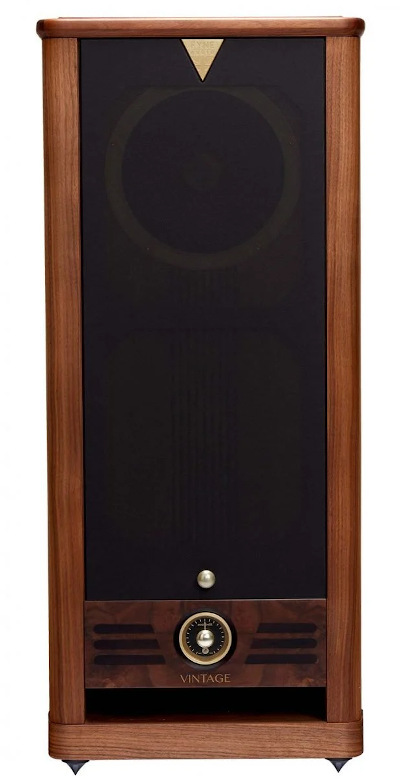

Seamlessly blending the celebrated cabinet finery of traditional loudspeakers alongside the cutting-edge audio engineering of Dr Paul Mills, the Vintage Ten is a triumph of bold, no-compromise design.
While still a sizeable cabinet, the handcrafted enclosures of the Vintage Ten are kept relatively slim to allow easy visual integration into small and medium sized listening rooms.
Yet with ‘no compromise’ as the theme across the range, the Vintage Ten comes with all the audio advancements of its larger siblings, including a 250mm (10”) IsoFlare driver featuring a FyneFlute roll surround, state-of-the art BassTrax downwards-firing port system and premium, hand-built Deep Cryogenically Treated crossovers.
With Presence and HF Energy controls to further tailor the sound to the listening environment, the Vintage Ten is the most room-agnostic floorstanding loudspeaker in the Vintage Series.
SPECIFICATIONS
System Type: 2 way, downwards firing port, with BassTrax Tractrix diffuser
Recommended amplifier power (Watt RMS): 20 - 280
Peak power handling (Watt): 560
Continuous power handling (Watt RMS): 140
Sensitivity (2.83 Volt @ 1m): 94dB
Nominal impedance: 8 Ohm
Frequency response (-6dB typical in room): 26Hz- 26kHz
Drive unit complement: 1 x 250mm IsoFlare point source driver, multi-fibre bass / midrange cone, with 75mm titanium alloy dome compression tweeter, neodymium magnet system
Crossover frequency: 750Hz
Crossover type: Bi-wired passive low loss, 2nd order low pass, 2nd order high pass, Deep Cryogenically Treated
System adjustments: High frequency energy (750Hz - 26kHz) +/- 3dB Presence (2.5kHz - 5.0kHz) +/- 3dB
Dimensions - HxWxD: 1040 x 468 x 489mm (40.9 x 18.4 x 19.3")
Weight - Each: 54.6Kg
Finishes : Walnut
Cabinet Construction: Birch ply with oiled walnut and solid walnut trim, extensive internal bracing
