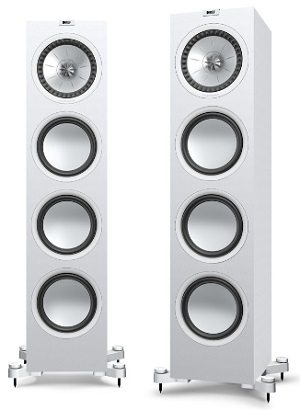

Q950 Floorstanding Speaker
Q950 is the flagship model of the Q Series range, featuring the KEF signature Uni-Q driver array paired with 200mm (8 inch) long-throw bass driver and matching ABRs. With the latest enhancement in acoustics and design, Q950 brings high resolution sound with extraordinary depth and exceptional clarity.
At the heart of the evolved Q Series is the Uni-Q driver array. The signature innovation places the tweeter in the acoustic centre of the midrange and bass cone, bringing the acoustic ideal of a single point source closer than ever to realisation. The result is a more detailed, accurate three-dimensional sound image, which is dispersed more evenly throughout the room than is possible with any conventional speaker. Uni-Q's ultra-wide dispersion is further enhanced through KEF's 'tangerine' waveguide over the tweeter dome.
With the addition of the damped tweeter loading tube providing a gentle termination of sound produced from the back of the tweeter, lower treble performance is improved dramatically and a new low-distortion inductor on the crossover provides cleaner bass.
The closed box midrange cabinet design reduces the load on the Uni-Q midrange cone, increasing clarity and detail while delivering cleaner, punchier bass. Midrange clarity is enhanced again through improvements to the mid-bass driver that allowed the DC blocking capacitor to be eliminated. Its removal also created a more natural bass roll-off between the drivers.
Low-frequency (LF) drivers now have a larger roll surround, along with a new suspension to produce cleaner bass at high volumes. A new cone structure improves midrange clarity, and an enhanced Auxiliary Bass Radiator (ABR) with a new surround and rear suspension delivers better controlled and more impressive bass.
Technical Specifications:-
Design:
Two and a half-way bass reflex
Drive Units:
200mm (8in.) aluminium Uni-Q
38mm (1.5in.)vented aluminium dome HF
200mm (8in.) aluminium LF
2 x 200mm (8in.)aluminium ABR
Frequency range free field:
38Hz (-6dB)
Frequency Response:
44Hz-28kHz (±3dB)
Crossover Frequencies:
2.2kHz
Maximum Output:
113dB
Amplifier requirements:
15-200W
Sensitivity:
91dB (2.83V/1m)
Nominal Impedance:
8 Ohms (min.3.2 Ohms)
Dimensions:
H x W x D:
1062 x 244 x 328 mm
1116 x 357 x 328 mm (with Plinth)
Weight:
20.6kg (45.4 lbs)
Unit measurement:
Pair

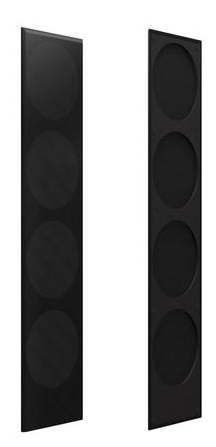

Q950 GRILLE PACK
A neat black cloth grille to cover the drive units on KEF Q Series loudspeakers.
Q Series cloth grilles conceal the speaker drivers and give the speaker a clean appearance. Magnetic fixings mean easy attachment and removal.
