R3
R3 redefines standmount performance. No surprise, as it shares the same drivers as the range-topping R11. A true three-way speaker, the 165mm (6.5 in.) bass driver pushes bass performance to new extremes. The 125mm (5 in.) midrange driver and 25mm (1 in.) aluminium dome tweeter creates a Uni-Q array that defies the expectations from the most compact main speaker in the range.
Uni-Q
Placing the tweeter in the acoustic centre of the midrange cone brings the acoustic ideal of a single point source closer to realisation. The new R Series benefits from a new 12th generation of the legendary Uni-Q which has been extensively designed using KEF’s in-house simulation and analysis tools. KEF’s engineers have been able to dramatically reduce colouration through reducing resonance in the minute gaps between Uni-Q’s separate elements. The resulting sound is purer, more precise and makes stereo imaging far more believable.
SHADOW FLARE
Derived directly from the Reference Series, the Shadow Flare is an innovative method of reducing harmful cabinet diffraction for delicate high-frequencies. Shadow Flare is a carefully profiled transition surface which extends the waveguide effect of Uni-Q. The tweeter no longer has line of sight of the cabinet edges, creating a ‘shadow region’ at the points where the potential for diffraction is highest. The result is vastly improved fine detail, particularly when it comes to the subtle nuances of plucked strings and other percussive sounds.
LOW FREQUENCY DRIVERS
Bass is the very foundation of music; everything is built upon it and maximising bass performance is a vital building block towards pristine sound. R Series bass drivers are built using a two-part structure, where a shallow concave aluminium skin sits atop a paper cone. This great stiffness, combined with the cone’s unique geometry, delivers pure piston like movement to deliver punch and speed. To accurately control this mighty driver, KEF has also completely redesigned its magnet system to create a more even magnetic field. The overall result is more impressive and impactful.
CABINET BRACING
A solid platform is imperative for great sound. The new R Series benefits from Constrained layer damping. This system utilises internal braces joined by a ‘lossy’ interface and is highly effective at dissipating unwanted vibrations that would otherwise artificially change the sound and music.
FLEXIBLE PORT TECHNOLOGY
When it comes to generating deep, articulate bass, port design is crucial. The ports in R Series feature innovative flexible walls. Using computational fluid dynamics, the flare and profile of each port is calculated to delay the onset of turbulence, while the flexible port walls prevent longitudinal resonances from colouring the midrange.
Technical Specifications:-
DESIGN:
Three-way bass reflex
DRIVE UNITS:
Uni-Q Driver Array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium cone
Bass Driver:
LF: 165mm (6.5in.) hybrid aluminium
CROSSOVER FREQUENCIES:
400Hz, 2.9kHz
FREQUENCY RANGE:
38Hz-50kHz (-6dB)
TYPICAL IN-ROOM BASS RESPONSE:
30Hz (-6dB)
FREQUENCY RESPONSE:
58Hz-28kHz (±3dB)
HARMONIC DISTORTION:
< 0.3% 130Hz-20kHz (90dB, 1m)
MAXIMUM OUTPUT:
110dB
AMPLIFIER POWER:
15-180W (recommended)
NOMINAL IMPEDANCE:
8Ohms (min.3.2Ohms)
SENSITIVITY:
87dB (2.83V/1m)
WEIGHT*:
13.5 kg (29.8 lbs.)
DIMENSION (H X W X D):
422.2 x 199.6 x 335.5 mm (16.6 x 7.9 x 13.2 in.) with terminal*
DIMENSION (H X W X D):
422 x 199.6 x 312 Cabinet only

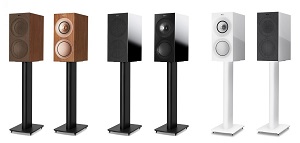

FINISHES:
Black Gloss / White Gloss / Walnut
