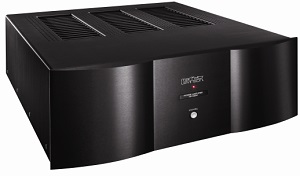

The Nº533H shares the same basic amplifier module as the Nº531H and Nº532H but is a semi-monoblock design. With power supplies that can be shared across multiple channels, this design lends itself well to multi-channel environments where one channel might need more power at times than others. All other features of the Nº533H are identical to the Nº531H and Nº532H and the common design creates a consistent sonic signature for use in multiple amplifier system configurations.
The four amplifiers in the No500H Series are the definition of truly outstanding performance in their respective categories. Drawing from the Mark Levinson heritage, while utilizing a new, straightforward, balanced, current-feedback design creates a new series of amplifiers that must be listened to in order to be fully appreciated. The final result is impressive even for the Mark Levinson high standard of excellence.
Specifications:-
Communication and Control:
one Ethernet 10Base-T port; one 3.5mm mono (tip/sleeve) mini plug trigger input, 3-12Vdc; one 3.5mm mono (tip/sleeve) mini plug trigger output, 3-12Vdc; 3-pin IEC standard power connector
Frequency Response:
within 0.5dB from 10Hz to 20kHz
Inputs:
two balanced XLR inputs; two unbalanced RCA inputs
Input Impedance:
60 kΩ (balanced); 30 kΩ (unbalanced)
Input Sensitivity :
2.83Vrms output at 130mVrms input
Rated Output Power into 8 ohms:
300W/ch (20Hz to 20kHz at
Signal-to-Noise Ratio:
Greater than 85dB, reference level: 2.83 Vrms
Gain:
26.8dB
Power Requirements :
100V~, 120V~, 230V~, factory set for destination country;
Speaker Connections:
one pair “Hurricane” loudspeaker outputs with banana-plug sockets per channel (banana-plug socket not available on the 230 VAC models)
Height:
(with feet): 7.65" (19.4cm); (without feet): 6.97" (17.7cm)
Width:
17.75" (45.1cm)
Depth:
19.83" (50.4cm)
Weight:
Net Weight: 90.0 lbs (40.8kg) Shipping weight: 100.0 lbs (45.4kg)
Power Consumption:
900W
