Classic ESL 9
A masterpiece doesn’t just inspire emotions. It changes the way you feel, and it sticks with you long after you’ve left the art gallery or the concert hall. It’s considered a masterpiece precisely because of its ability to alter something inside you. Once you experience it, you’ll never be the same. Enjoying a masterpiece in your own home is something to aspire to.

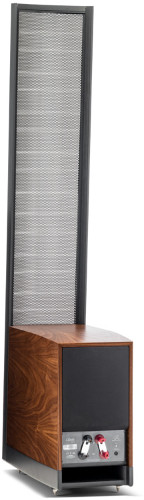

MartinLogan unveils the Classic ESL 9, its newest modern Masterpiece. All the familiar elements of MartinLogan’s flagship ESL series are here, with some revolutionary refinements. The heart of this exceptional loudspeaker is its 9.2-inch-wide Curvilinear Line Source (CLS) XStat vacuum-bonded electrostatic transducer. Advanced MicroPerf stator technology reveals more of the diaphragm surface area than any other electrostatic panel in this size class, efficiently increasing the narrow panel’s output. Ultra-rigid AirFrame Blade construction reduces performance-robbing vibrations, its shape creating an expressive alignment with the woofer cabinet. Deep bass is rendered with unflinching accuracy and authority by dual 8-inch low-distortion, high-excursion aluminum cone woofers in a beautifully sculpted enclosure.
Advanced MicroPerf stator technology, which allows for almost twice the exposed electrostatic diaphragm surface as a traditional electrostatic panel of the same size. A reinforced electrostatic panel with rigid ClearSpar™ spacers, keeping an exact level of tension on the vacuum-bonded diaphragm without obscuring the beautiful see-through design. Add to these the slender, pointed-arrow design of the new AirFrame™ Blade construction and the result is a powerfully evocative composition creating a harmonious connection between the panel and its woofer cabinet.
Consider the Classic ESL 9 your ticket to a life-changing experience with a masterpiece of audio performance. You will never be the same.
Technical Specifications:-
Frequency Response
34–23,000 Hz ±3dB
Horizontal Dispersion
30°
Vertical Dispersion
44" (112cm) line source
High Frequency Transducer
XStat™ CLS™ electrostatic transducer
Panel Dimensions
44" × 9.2" (112 × 23cm)
Radiating Area
405 in2 (2,576 cm2)
Low Frequency Transducer
Two 8” (20.3 cm) cast basket, high excursion, rigid aluminium cone woofers with extended throw drive assembly, non-resonance asymmetrical chamber format
Sensitivity
90 dB/2.83 volts/meter
Impedance
4 Ohms, 0.8 at 20kHz. Compatible with 4, 6, or 8 Ohm rated amplifiers.
Recommended Amplifier Power
20‒400 watts per channel
Crossover Frequency
380Hz
Components
Custom-wound audio transformer, air core coils, low DCR steel laminate coils, polyester capacitors

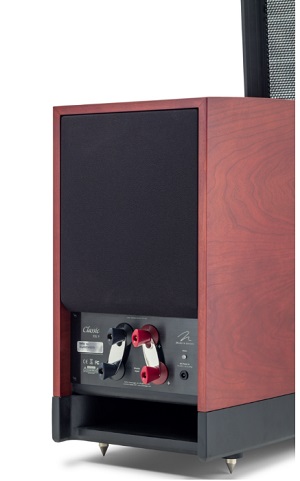

Signal Inputs
Custom 5-way bi-wire tool-less binding posts
Power Draw
Max: 2W per channel Standby: < 1W per channel
Weight
78 lbs. (35.4 kg)
Dimensions
59.8" × 10.4" × 25.4"
(152cm × 36.4cm × 64.6cm)
