The EM-IW features our exotic Folded Motion tweeter and a 6.5-inch aluminum cone woofer with cast aluminum basket that provides powerful low-frequency bass extension. This stealthy inwall speaker blends seamlessly into any home thanks to it's ultra-low profile, micro perforated grille with no visible bezel.
Martin Logan's exquisite Folded Motion tweeter boasts a radiating surface 8-times larger than a typical 1" dome tweeter. The Folded Motion tweeter works by moving air (which creates sound) perpendicular to the folded ridges of the diaphragm, similar to how an accordion works.
This extremely low mass diaphragm "squeezes" air and requires almost 90% less excursion than the typical 1" dome tweeter, which drastically minimizes distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.

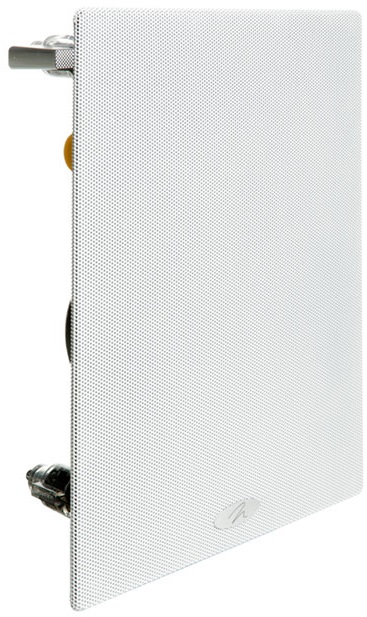

MartinLogan's new architectural speakers feature ultra-low profile, paintable micro perforated grilles with no visible bezel for near invisible integration into any wall or ceiling. A magnetic system secures grilles easily into place, reducing the risk of warping or damage during installation.
Specifications:
Application In-Wall
Frequency Response 47–25kHz ±3dB
Dispersion 80° x 80°
Sensitivity 90 dB/2.83 volts/meter
Nominal Impedance 4 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers.
Recommended Amplifier Power 20-200 watts per channel
Crossover Frequency 2,500 Hz
High Frequency Transducer 1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm.
Low Frequency Driver . 6.5" (16.5cm) aluminum cone with cast aluminum basket. Concave dust cap.
Weight 5.5lbs. (2.5kg) each
Overall Dimensions 11" (27.9cm) Height
8.5" (21.6cm) Width
3.925" (10cm) Depth
Cut-Out Dimensions 10.25" (26cm) Height
7.875" (20cm) Width
Depth Required Behind Wall Surface 3.8" (9.7cm)
Projection From Wall Surface .125" (.3cm)
