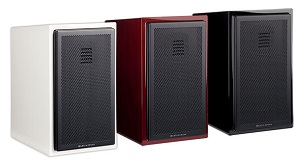

Motion 35XT is Martin Logan's largest bookshelf with extreme performance capabilities,
featuring luxurious high-gloss wood finishes and matching aesthetics to the rest
of the Motion Series lineup.
XT stands for extreme, and for good reason. The Motion 35XT bookshelf plays louder, lower, and with
unflinching accuracy. Their most accurate Folded Motion™ XT tweeter paired with a low-distortion 6.5-inch highexcursion
black-aluminum woofer and low-turbulence rear-firing bass port creates audible acoustic alchemy.
MartinLogan’s signature perforated steel grille attaches magnetically to the
solidly constructed 3/4-inch thick MDF cabinets on the Motion 35XT. Hidden
discretely underneath the grille, the drivers are held securely in place by a
solid, black-anodized brushed aluminum baffle. Folded Motion XT tweeters and
woofers are seamlessly blended with an advanced topology crossover network
featuring polypropylene and low-DF electrolytic capacitors, custom wound
inductors, and thermal and current protection. The Motion 35XT also features
dual custom 5-way tool-les binding posts for connection versatility.
Technical Specifications:-
Frequency Response
50–25,000 Hz ± 3 dB
Dispersion
80° x 30°
High Frequency Driver
1.25” x 2.4” (3.2cm x 6.1cm)
Folded Motion XT Transducer with 4.5” x 2.75”
(11.4cm x 7cm) diaphragm.
Low Frequency Transducer
6.5” (16.5cm) aluminum cone with cast polymer
basket. Non-resonant asymmetrical chamber format.
Rigid structured dust cap to reduce cone break-up
modes.
Sensitivity
92 dB @ 2.83 volts/meter
Impedance
4 Ohms. Compatible with 4, 6
or 8 Ohm rated amplifiers.
Recommended Amplifier Power
20–250 watts
Crossover Frequency
2,200 Hz
Cabinet
Ported
Components
Custom air core coil and low DCR steel laminate
inductors. Polypropylene film capacitors in series and
low DF electrolytic capacitors in parallel. Tweeter
thermal/current protection.
Inputs
Custom 5-way bi-wire tool-less binding posts
Weight
18.5 lbs. (8.4 kg)
Dimensions
13.5” x 7.6” x 11.8”
(34.3cm x 19.2cm x 30cm)
