Motion 60XTi

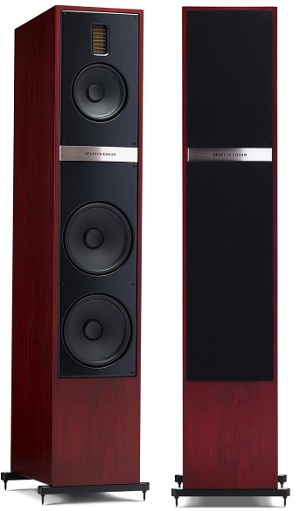

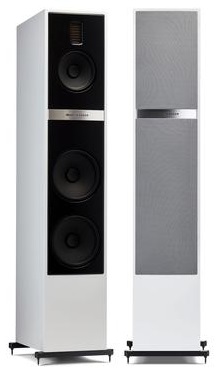

A powerful floorstanding speaker featuring a Folded Motion® XT tweeter, 6.5-inch aluminum cone midrange driver, and dual 8-inch aluminum cone woofers with rear-firing bass ports. Available in three stylish finishes: gloss black, matte white, and red walnut.
THE MOTION LEGACY.
The success of the Motion Series is directly attributed to its close relation
to MartinLogan’s legendary ultra-high-end electrostatic loudspeakers.
The desire to transmute that level of performance into a more traditional
speaker at a more affordable price drove the initial design imperatives
that created the Motion Series.
Key to its success is the unique Folded Motion and Folded Motion XT tweeter
technology. This thin-film transducer design packs all the accuracy and delicacy
of an electrostatic panel into a small space. Crimping the dramatically lightweight
film into an accordion-like structure increases the surface area, giving
Folded Motion tweeters 8–10 times more surface area than typical tweeters.
This ideal combination of light and large produces higher levels of accuracy,
more extended bandwidth, and higher output capability, all with a faster, more
efficient transient response, and virtually zero distortion. In these characteristics,
the Folded Motion tweeter design can mimic the performance of a large
electrostatic panel in the confines of a more traditional loudspeaker enclosure.
v
By matching the Folded Motion tweeter to high-performance drivers and
woofer systems, with hand-built and custom tuned crossovers, the Motion
Series extended MartinLogan’s reputation beyond the realm of the world’s
finest electrostatic loudspeakers. Motion speakers continue that groundbreaking
standard, delivering a richly detailed musical and cinematic
experience at an unrivaled price.
ALUMINUM CONE MID-FREQUENCY AND BASS DRIVERS.
Custom built, stiff and lightweight, low-distortion drivers with
high-power magnet structures. These deliver massive excursion
and sound output, preserve minute bass details, and maximize
power handling capability, all without a hint of distortion. A
unique concave dust cap design reinforces the strength and
rigidity of the cone while reducing break up modes.
PROPRIETARY VOJTKO™ CROSSOVER NETWORKS.
High quality
polypropylene and low-DF electrolytic capacitors, custom
wound inductors, and thermal and current protection for a
seamless sonic presentation. Straightforward topologies and
pragmatic, real-world voicing delivers reliable, realistic performance
in any listening space.
PERFORMANCE-ENHANCING ENCLOSURE TECHNOLOGY.
Motion speakers feature reinforced baffles, virtually eliminating
performance-robbing cabinet resonances. Elegant, understated
new styling complements flat-panel televisions and other
high-end components. Motion 60XTi and 50XTi also feature
additional interior bracing.
CUSTOM 5-WAY TOOL-LESS BINDING POSTS.
Ensure a secure connection, gold-plated for better signal transfer. Bi-wiring
option on some models.
Neodymium
Super Magnets
Aluminum Etched
Folded Polyamid
Diaphragm
Rigid Steel
Housing
Technical Specifications:-
Frequency Response:
35–25,000 Hz ±3dB
Recommended Amplifier Power:
20—400 watts per channel
Horizontal Dispersion:
80°
Vertical Dispersion:
30°
Sensitivity:
94 dB/2.83 volts/meter
Impedance:
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency:
400 & 2,200 Hz
High Frequency Transducer:
1.25" × 2.4" (3.2cm × 6.1cm) Folded Motion XT Transducer with 4.5" x 2.75" (11.4cm × 7cm) diaphragm
Mid Frequency Transducer:
6.5” (16.5cm) aluminum cone with cast polymer basket. Sealed chamber format. Rigid structured dust cap to reduce cone break-up modes.
Low Frequency Transducer:
Two 8” (20.3cm) aluminum cone with cast aluminum basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.
Components:
Custom air core coil and low DCR steel laminate inductors. Polypropylene film capacitors in series and low DF electrolytic capacitors in parallel. Tweeter thermal/current protection.
Inputs:
Custom 5-way bi-wire tool-less binding posts
Weight:
66 lbs. (30 kg)
Dimensions:
48" x 11.4" x 14.4 "
(121.8cm x 29cm x 36.6cm)
