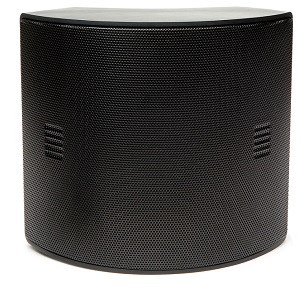

Motion FX
Audiophile Performance without an audiophile price
Inspired by our ultra-high-end electrostatic loudspeakers, Motion FX features dual
Folded Motion tweeters in a wide dispersion configuration, powerful bass, and
folded reflex port technology in a compact, affordable package. Key to Motion FX’s
performance is the lightning fast response of the tweeter’s light-weight diaphragm
combined with a large surface area (8-times that of a typical one-inch dome tweeter)
which together achieve a smooth, refined sound with stunning dynamic range
and jaw-dropping clarity.
Application:
Home theater wide dispersion surround
ideal for large, medium, and small rooms.
Inspired by MartinLogan’s ultra-high-end
electrostatic loudspeakers, the Motion
Series was created by our dedicated
in-house engineering team to provide
stunningly compelling sound for your
ultimate-performance audio system.
Key Features:
• Dual Folded Motion™ tweeters
• Wide dispersion
• 5.25-inch paper cone woofer doped for
stability and damping. Rigid dust cap.
• Folded bass reflex port
• Precision Vojtko™ crossover with
custom air core coil and low DCR steel
laminate inductors; polyester film and
low DF electrolytic capacitors
• On-wall installation in corner, flat on
wall, or angled on wall
• Bookshelf installation
• Convenient push-style binding posts
easily adapt to accept banana plugs.
Technical Specifications:-
Frequency Response: 74–25,000 Hz ± 3dB
Sensitivity: 91 dB/2.83 volts/meter
Impedance: 4 Ohms. Compatible with 4, 6,
or 8 Ohm rated amplifiers.
Crossover Frequency: 4500 Hz
High Frequency Driver: Two 1 x 1.4” (2.6 x 3.6 cm) Folded Motion
Transducer with 5.25 x 1.75”
(13.3 x 4.4 cm) diaphragm.
Mid/Low Freq. Drivers: 5.25” (13.3 cm) paper cone.
Folded Bass Reflex Port
Recommended Amp: 20–160 watts
Weight: 9.5 lbs. (4.4 kg)
Size (HxWxD): 11.1 x 12 x 6”
(28.2 x 30.5 x 15.2 cm)
