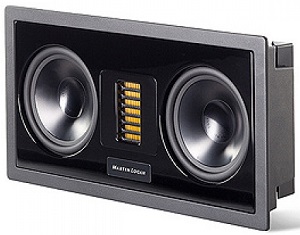

Stealth Series Axis In-Wall - Paintable White
We've also refined the look underneath the grille for those who want to show off their high-performance in-wall or in-ceiling speakers. The driver complements are held securely in place by a flush mounted 3/4-inch solid, high-gloss piano black baffle that hides all mounting hardware.
Key to their sophisticated sound is an advanced topology Vojtko™ crossover network. Each crossover is built on top of double-layered, super-thick, black PC boards and constructed with the highest-quality components. Internals including massive air-core coils, thick, high-purity 16-gauge copper wire, and low-distortion polypropylene capacitors ensure that every nuance of the audio signal is preserved.
Critical to architectural products is their ease of installation. The Stealth Series continues MartinLogan's tradition of innovative engineering solutions which allow custom retailers to quickly and easily install their products. Each model features easy push style inputs and an extremely robust mounting-lock system that couples with the speaker's rigid aluminum chassis when installed. Axis and Edge in-wall models feature rotatable tweeters, which allows installers complete flexibility for both horizontal or vertical installation. Axis is sized to fit perfectly between standard 16-inch stud spacing for center channel applications.
AXIS
Frequency Response
45–25kHz ±3dB
Dispersion
80° x 30°
Sensitivity
94 dB/2.83 volts/meter
Nominal Impedance
4 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers.
Recommended Amplifier Power
20-250 watts per channel
Crossover Frequency
700 & 2,000 Hz
Crossover Components
Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors. Overall system thermal/current protection.
High Frequency Transducer
1.25" x 2.4" (3.2cm x 6.1cm) Folded Motion XT Transducer with 4.5" x 2.75" (11.4cm x 7cm) diaphragm.
Mid Frequency Driver
-
Low Frequency Driver
Two 5.25" (13.4cm) aluminum cone with cast aluminum basket. Concave dust cap.
Inputs
Push style binding posts.
Weight
13lbs. (5.9kg) each
Overall Dimensions
15.2" (38.6cm) Height
7.8" (19.9cm) Width
3.9" (9.9cm) Depth
Cut-Out Dimensions
14.4" (36.7cm) Height
7.1" (18cm) Width
Depth Required Behind Wall Surface
3.7" (9.4cm)
Projection From Wall Surface
.2" (.6cm)
