Ingeniously engineered to be versatile within your home, the DSP3300 is an ideal building block in a compact Meridian system. The DSP3300’s precision-manufactured cabinet includes a rubber mount, enabling the speaker to be placed horizontally or vertically with no reduction in sound quality. The design is also suitable for wall mounting.
This speaker can also serve magnificently as the ideal centre channel, to complement a pair of compact and elegant DSP3200s or M6s. Used in a surround sound system, the smooth-lined DSP3300 will expertly handle any of the front, centre channel, and surround duties.
The compact DSP3300 cabinet houses three drivers, plus the advanced electronics necessary to deliver room-filling sound equal to the performance level of a conventional speaker four times the size.
The traditional setup – amplifiers driving passive loudspeakers – is inefficient, limiting sound quality. Meridian loudspeakers contain a complete, matched audio system with efficient DSP crossovers, multiple DACs and driver-specific amplifiers, giving higher overall quality, less power use, and the performance of a traditional loudspeaker eight times the physical volume.
Traditional audio systems often require large, expensive cables to maintain their performance. Meridian's SpeakerLink uses an “Ethernet style” cable that delivers pristine digital sound and control down a single cable between Meridian components. The result is simple, unobtrusive, and cost-effective cables that are easy to install.
DSP3300 is a versatile digital loudspeaker ideal for main, centre channel and surround operation in smaller and medium-sized systems. Two powerful amplifiers, coupled with Meridian’s award-winning DSP crossover system, give the DSP3300 an extremely impressive performance both in terms of bass and overall sound pressure levels for a loudspeaker of this size.
DSP3300 forms the ideal centre channel complement to a pair of DSP3200 loudspeakers: the latter use identical drivers and deliver a sonic signature that matches the DSP3300 well. A compact but very capable surround system can be configured using DSP3300 units throughout.
The DSP3300 is an ideal building block in a smaller Meridian system, for example coupled with an Audio Core 200, for adding an extra zone to a multi-room system, or for use as main, surround or centre channel loudspeakers in a smaller multichannel environment.

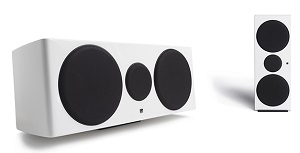

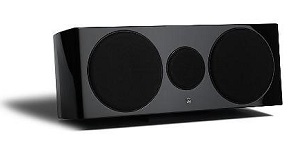

Available in high-gloss white and high-gloss black.
Perfectly suited to a wide range of room positions – horizontally or vertically, on or in furniture or on wall brackets.
Rubber mount (included) allows vertical standing or angling up in horizontal position. König & Meyer 24471 wall bracket (same as used with DSP3200) allows wall mounting.
Technical Specifications:-
2-way sealed enclosure system Drivers.
2 x 165mm polypropylene bass driver.
1 x 85mm aluminium cone wide-range driver.
Two 75W power amplifiers, bass and widerange.
Overall distortion typically < 0.02% at any frequency. or level Indicators.
Rear-mounted LED.
Height (horizontal orientation): 206mm (8.1in); width: 555mm (21.9in); depth: 235mm (9.25in)
11.5kg (25.3lb) per unit
