The DSP5200 is a powerful, yet relatively compact (under a metre high) member of Meridian's DSP Loudspeaker family that out-performs anything of its size, while its visual design and elegance remain second-to-none.
Taking its cue from the flagship DSP8000, the DSP5200 distils its essence into a smaller package that is suitable not only for delivering superb sound where space is limited, but also more expansive environments, as well as being suitable as a side speaker, for example, in larger surround system.

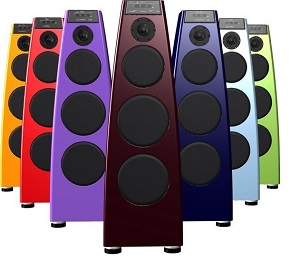

AVAILABLE IN OVER 270 COLOURS
Meridian Select, our bespoke colour service, provides a choice of over 270 different colours and shades to help your Meridian system achieve an ideal match – or striking standout look – within its surroundings.
The DSP5200.2 is available as standard in a choice of black or white high gloss lacquer finishes.
DSP5200.2 is available in vertical format either as pairs, or as a vertical centre speaker for surround applications. A DSP5200.2HC horizontal centre version is also available for installation under a screen
The traditional setup – amplifiers driving passive loudspeakers – is inefficient, limiting sound quality. Meridian loudspeakers contain a complete, matched audio system with efficient DSP crossovers, multiple DACs and driver-specific amplifiers, giving higher overall quality, less power use, and the performance of a traditional loudspeaker eight times the physical volume.
Traditional audio systems often require large, expensive cables to maintain their performance. Meridian's SpeakerLink uses an “Ethernet style” cable that delivers pristine digital sound and control down a single cable between Meridian components. The result is simple, unobtrusive, and cost-effective cables that are easy to install.
Each sample of a digital recording must remain evenly spaced in time. Unfortunately, timing can vary, especially when reading discs. This is “jitter”, degrading music's sense of space and diminishing realism. Meridian's multiple “First In, First Out” buffering system minimises jitter, ensuring perfect timing and improved clarity. You enjoy a clearer feeling of the instruments and their interrelationship.
MHR was the first approved encryption method for transferring high definition digital audio between components. Previously, it had to be in the analogue domain, reducing quality. MHR allows secure movement of high resolution digital audio within a Meridian system, without compromise, improving quality by reducing cyclic repetition.
Filters are critical in digital audio. Commonly they introduce distortion and harshness because of "pre-ringing". Early digital recordings suffer from harshness too, due to primitive filters. After painstaking research, Meridian developed a special filter that avoids pre-ringing, so it can be steeper, cleaning up the effects of early filters. The result: a better, cleaner sound from recordings old and new.
Technical Specification:-
Inputs - Meridian SpeakerLink in and out (RJ45)
S/PDIF digital input, 32kHz–96kHz sampling rates at up to 24 bit with MHR support (phono).
Construction - ‘2 1/2-way’ acoustic reflex system. Single-port (vertical model) or dual-port (horizontal centre).
Electronics - Two precision 24/192 oversampling converters for bass/mid and tweeter signals. Active bass/mid crossover. Digital and conversion electronics constructed using advanced surface-mount techniques and partitioned 6-layer printed-circuit boards.
DSP - 150MIPS digital signal processor. Digital crossover at 2.6kHz. Response correction for the whole system. Bass protection. User tone controls. Analogue/digital volume and phase control.
Three 75W power amplifiers, one for each driver.
Dimensions - Vertical model: height: 903mm/36in (without spikes/feet); width: 300mm/ 12in at base, tapering to 179mm/7in; depth: 356mm/14in at base, tapering to 217mm/8.5in.
Weight - 35 Kg packed
