COMING SOON IN NOVEMBER 2019 - PRE-ORDERS ARE MOST WELCOME

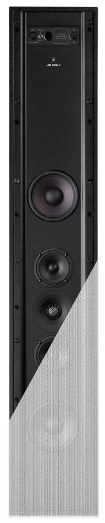

The class-leading DSP750 is Meridian’s highest performing architectural loudspeaker. Engineered using Meridian’s, core principles of acoustic design, the DSP750 delivers high-resolution audio that is perfect for architectural installations and dedicated home theatres.
• Optimised for use behind a screen or grille.
• Exceptional signal to noise ratio - perfect for quiet movie moments.
• High dynamic range audio from the quietest detail to the loudest crescendo.
• Pinpoint imaging - independent of listening position, ideal for large theatre applications.
• Delivers incredible power, fidelity and accuracy for both music and movies.
Featuring all-new drive-units, including a beryllium tweeter, the DSP750 produces a natural and lifelike sound with high fidelity and perfect tonal balance. Its high dynamic range, incredibly low distortion, and outstanding signal-to-noise ratio combine to provide full-range audio with exceptional headroom and low listener-fatigue.
KEY FEATURES:-
Class-leading performance for ultimate music and movie reproduction - maximum output of 120dB @ 1m. Frequency response 30Hz – 40kHz.
Five new drive units that unleash the full potential of the Class-M DSP engine and Dynamic Hi-Res amplifiers.
Five pairs of Class-D amplifiers - each pair bridged capable of providing greater than 100W into 8 Ohms.
Custom tweeter with Beryllium dome and diffraction expansion technology for wide dispersion and pinpoint imaging.
Digital Signal Processing:
As pioneers and leaders in the field of Digital Signal Processing (DSP) technology, Meridian is able to deliver your music authentically to recreate the passion and involvement of your musical moments. Power-efficient, active DSP crossovers are individually tailored to distribute music to each speaker, bringing your music to life.
Speakerlink:
Traditional audio systems often require large, expensive cables to maintain their performance. Meridian's SpeakerLink uses an “Ethernet style” cable that delivers pristine digital sound and control down a single cable between Meridian components. The result is simple, unobtrusive, and cost-effective cables that are easy to install.
Fifo Buffering:
Each sample of a digital recording must remain evenly spaced in time. Unfortunately, timing can vary, especially when reading discs. This is “jitter”, degrading music's sense of space and diminishing realism. Meridian's multiple “First In, First Out” buffering system minimises jitter, ensuring perfect timing and improved clarity. You enjoy a clearer feeling of the instruments and their interrelationship.
Meridian Apodising Filter:
Filters are critical in digital audio. Commonly they introduce distortion and harshness because of "pre-ringing". Early digital recordings suffer from harshness too, due to primitive filters. After painstaking research, Meridian developed a special filter that avoids pre-ringing, so it can be steeper, cleaning up the effects of early filters. The result: a better, cleaner sound from recordings old and new.
Wide Range Driver:
Loudspeakers use crossovers to “divide” music into bands their drivers can reproduce. This introduces distortion, reducing sound quality – particularly on human voice recordings. Designing a single driver for both mid and high frequencies made a crossover within the vocal range unnecessary, avoiding distortion and reproducing more lifelike vocals at all volume levels.
Enhanced Bass Alignment (EBA)
High or low, all sounds travel at the same speed, so all the sounds from a live musical event arrive at your ear at the same time, whatever frequencies they contain. Loudspeakers, however, have a problem when playing low frequency sounds at the same time as mid and high frequencies – the bass arrives late, and the deeper the sound, the later it arrives. This delayed bass causes music to lose its impact and reduces the sense of the recorded space – it is often described as “boomy”.
The goal is to have time-accurate loudspeakers, where all reproduced frequencies start and end at the same time. In a loudspeaker, this timing is affected by the crossover, driver, and enclosure
type. To eliminate the delay between low, and mid and high frequencies, Meridian has designed a combination of digital filters and time delays for the mid and high frequencies. This solution enables the mid and high frequencies to “wait” for the low frequencies, delivering perfectly-timed music playback.
Mid and high frequencies are delayed to time-align them, while upper bass is delayed with a special type of patented filter. These features must
be implemented entirely in the digital domain, making them impossible to achieve in any passive or analogue-active loudspeaker design.
Enhanced Bass Alignment provides accurate time-alignment of the drivers in the system, delivering exceptional imaging and a clear, transparent, more life like sound.
Technical Specifications:-
AUDIO INPUTS
Meridian SpeakerLink connector (RJ45)
AUDIO OUTPUTS
Meridian SpeakerLink connector (RJ45)
PERFORMANCE
Peak SPL: 120dB @ 1m
Frequency response: 30Hz - 40 kHz
Horizontal dispersion: 120° @ 20Hz - 10kHz, 70° @ 18kHz (-6dB)
AMPLIFIERS
Tweeter: 2 x Class-D amplifiers bridged for > 100W into 8 Ohms
Mid-range drivers (each): 2 x Class-D amplifiers bridged for > 100W into 8 Ohms
Bass drivers (each): 2 x Class-D amplifiers bridged for > 100W into 8 Ohms
TWEETER
Beryllium dome with diffraction expansion technology
MID-RANGE DRIVERS
2 x 100mm with woven polypropylene cone
BASS DRIVERS
2 x 160mm long-throw, high-output with titanium voice coil
FRONT PANEL CONTROLS
On/off rocker switch, Fuse holder, IR window
Rocker switch selects “Right”, “L + R”, “Left or Centre”
RS232 socket – 3.5mm minijack (long version – 18.6mm)
LED indicators show power status and configuration settings
DISPLAY
LED indicators to show power status and configuration settings
POWER
IEC mains cable included with loudspeaker for connection to rough-in box
DIMENSIONS / WEIGHT
HEIGHT: 1230mm [48.5in] (Excludes frame)
WIDTH: 203mm [8in]
DEPTH: 102mm [4in]
WEIGHT: 16 kg [33 lbs]
